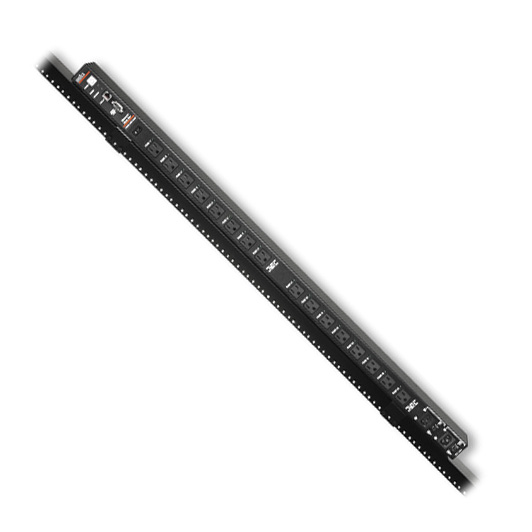

NBB-1600
  • Overview
  • Specifications
  • Download
Product Discontinued. Call Us at 888-483-2418 for Replace items.

Applications:

  • Remote Power Management and Control
  • Reboot Servers, Routers, Gateways, Network Switches and Other Remote Devices
Features:
  • Web Browser Access for Easy Setup and Operation
  • Encrypted Password Security
  • Sixteen (16) Individual Outlets 5-Plug Model Also Available
  • 230 VAC Model also Available
  • On / Off / Reboot / Default Switching
  • User-Defined Power-Up Default Status
  • IP Addressed, 10Base-T Interface
  • RS232 Modem / Console Port
  • Easily Mounts to Equipment Rack
  • Network Security Features
  • Power-Up Sequencing
  • Dual 15 Amp Power Circuits Total 30 Amps Maximum Load
  • Manual Power Control Button

Servers, routers, and other electronic equipment sometimes "locks-up," often requiring a service call to a remote site just to flip the power switch to perform a simple reboot. The NBB-1600 Network Boot Bar gives you the ability to perform this function from anywhere, just point your browser to the NBB-1600 's IP address, enter the secure user name and password, and you're just a click away from remote power control.

Two Convenient User Interfaces
The NBB-1600 provides two convenient methods for accessing configuration and switching functions; The Web Browser Interface and the Command Line Interface.

The Web Browser Interface consists of a series of simple, easy-to-use web page menus that allow you to select configuration parameters or initiate switching operations using your TCP/IP network and a JavaScript enabled web browser.

The Command Line Interface is an ASCII menu system, which allows you to configure and operate the NBB-1600 via telnet over TCP/IP network, via modem connection or via local PC using a terminal program such as Hyperterminal or TeraTerm.

Security Features
Access to the NBB-1600 command mode is password protected to prevent unauthorized users from gaining access to sensitive switching and configuration functions. Both the Web Browser Interface and Command Line Interface require the user to enter a password before allowing access.

Passwords transmitted via web browser use 64-bit encryption techniques to ensure that passwords remain protected and access to your equipment remains secure. Telnet control can be user-defined to a discrete TCP port, or completely turned off to ensure that no unprotected port is present.

The NBB-1600 also features two different levels of operational passwords; the System Administrator Level and the User Level. The System Level provides access to all configuration and switching functions, while the User Level is limited to switching functions only.

Easy to Configure, Easy to Use
The NBB-1600 can be configured via network, via modem, or locally via the serial console port. Easy to master, user-friendly menus and commands let you assign a location name, set system parameters and view plug status. Outlets can be switched on, off, rebooted or set to a user-defined default status using plug numbers or names.

Reliability and Support
The NBB-1600 is built in the USA and backed by a two year warranty. NetReach products are installed in thousands of network sites world wide. Our customers know they can depend on WTI for superior quality and reliability for their most mission-critical operations.

Power Input/Output - Model NBB-1600:
  AC Input: Two Separate Circuits; 15 Amps Max. per Circuit
      Voltage: 105 - 120 VAC, 60 Hz
      Connectors: Two (2) IEC-320 Inlets, Line Cords Supplied
  AC Outputs: Sixteen (16) Plugs, Split into Two 15 Amp Circuits
      Connectors: Sixteen (16) NEMA 5-15 Outlets
      Load: Power Circuit "A" (Plugs 1 to 8) - 15 Amps Total
Power Circuit "B" (Plugs 9 to 16) - 15 Amps Total
Console / Modem Port Interface:
  Connector: DB9M, RS232C, DTE (9-to-9-pin)
  Coding: Serial ASCII, 8 Bits, No Parity
7 Bit, Odd/Even, 300 bps to 38.4 Kbps.
Physical / Environmental:
  Size:
Length: 43.75" (111.1 cm)
Depth: 3.00" (7.6 cm)
Width: 1.75" (4.5 cm)
  Weight: 10 lbs. Shipping Weight
  Temperature: (Operating) 32°F to 122°F (0°C to 50°C)
  Humidity: 10 to 90% RH
