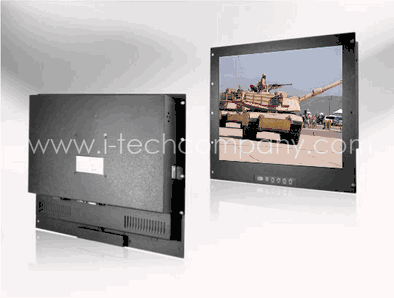

Rack Mount, 20.1" LCD monitor, 1400 x 1050, 300 nits w/ Resistive touch screen with USB Controller (Model: ERM2010A-TR)

Rack Mount, 20.1" LCD monitor, 1400 x 1050, 300 nits w/ Resistive touch screen with USB Controller

Rack Mount, 20.1" LCD monitor, 1400 x 1050, 300 nits w/ Resistive touch screen with USB Controller

ERM2010A-TR
  • Overview
  • Download

Features:

  • VGA Connector with optional AV, SV, AV-Looping.
  • Modularized mechanical design provides flexible product configuration and easy maintenance.
  • Complete custom design/solution for OEM customers
  • Optional Build-in touchscreen for interactive application

Specifications:


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4:3 / 20.1" viewable diagonal area
Active Area / Pixel Pitch 408.0(H) x 306.0(V) mm / 0.255(H) x 0.255(V) mm

Native Resolution / Colors

1400(H) x 1050(V) / 16.7 Million
Brignthess / Contrast 300 cd/m2 (typ) / 1000 :1
Response Time ^ 8 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80°) , V. 160°(- 80° ~ + 80°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W Speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x AC inlet
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 100 x 100 mm)
Power Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 40 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical W x H x D = 482.0 x 400.0(9U) x 73.0 (mm)
Carton W x H x D = TBD
Weight N.W. / G.W. 8.5 Kgs / 9.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD

Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV

Panel with LED backlight

Digital Signage(Stand alone)

Capacitive SV   +   AV   +   AV_ Looping High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
    Sun Light Readable Light Ssensor
      Auto-Dimming
