1U Heavy Duty Rack Mount LCD 19" Keyboard Drawer w/16-ports KVM (Model: BHK119-16e)

Rugged/Military 1U Rackmount 19" LCD Monitor Keyboard with 16-ports KVM switches(Model:BHK119-16e)

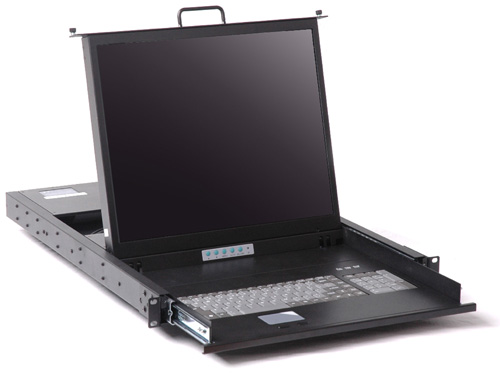

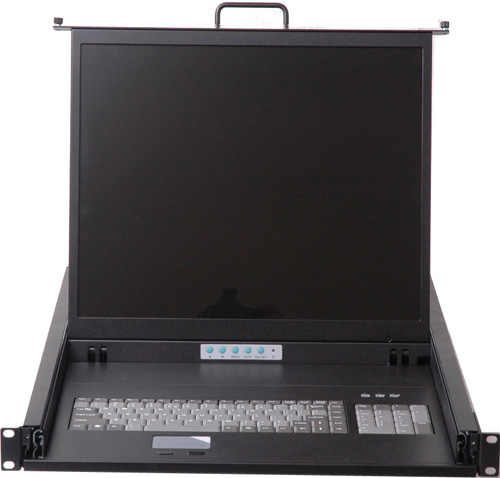

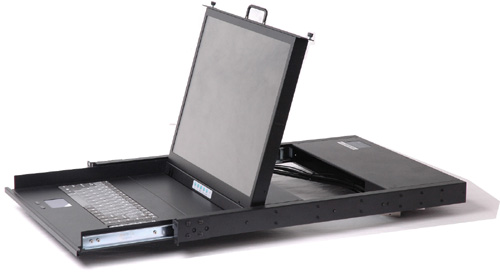

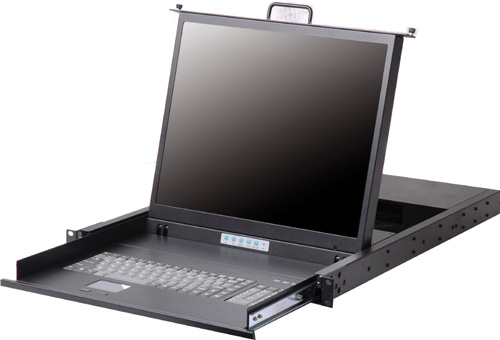

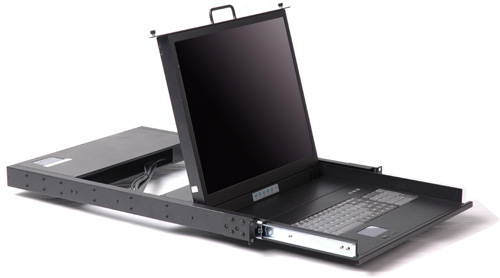

  • Front View
  • ISO Front View
  • Closed View
  • Keyboard
  • Accessories
  • Input/Output
  • Power Switch

Rugged/Military 1U Rackmount 19" LCD Monitor Keyboard with 16-ports KVM switches(Model:BHK119-16e)

BHK11916e
  • Overview
  • Specifications
  • Download
BHK Series RoHS compliant NOW is available!!
The integration of data and video, and voice communication in computers and the subsequent technological advances have spawn many sophisticated CTI applications that have become accessible and affordable to the small and mid-sized business. The increasing CTI applications coupled with the growing demand for corresponding hardware and systems have created a dilemma: How does one pack the growing number of equipment into existing space?

iTechLCD's 1U slim industrial monitor keyboard, the BHK, is the solution for compact-ing more computing power into limited space. This revolutionary monitor keyboard combines a spectacular display coupled with a keyboard with built-in pointing device in a compact unit that measures only 1U in height. Occupying a fraction of the space of traditional monitor and keyboard units, the installation of the BHK leaves ample space for other critical components. With built-in analog-to-digital conversion board, the BHK can be connected to any standard VGA graphics card for immediate On Screen Display. The monitor key-board unit has a built-in slide rail and mounts easily onto any 19" rackmount cabinet.

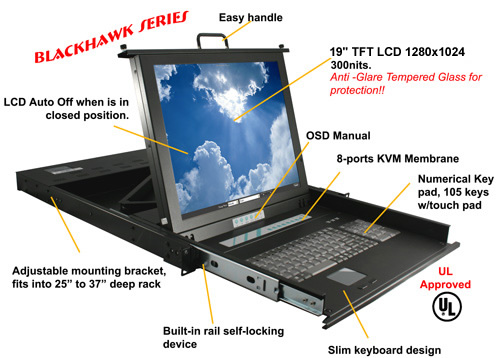

Features


  • Meets EIA310c & IEC-3 specifications
  • One set built-in Keyboard, touch pad & monitor
  • With high brightness TFT LCD Panel
  • 116-Key Cherry Keyboard with 3 buttons touchpad
  • Built-in Rail self-locking device
  • D-Sub 15 pin to VGA, USB keyboard/Mouse Cable
  • (optional cable D-sub 15 pin to VGA,PS/2 K/B mouse)

Model No BHK11916e
Ports Switch D-Sub 15 pin single ports KVM
Weight 31 LBS
Dimension 1.75 x 17.42 x 23.63 inches (H x W x D)
Power Supply 60W, 100-240VAC, 50/60Hz
Construction Heavy-Duty Steel
Keyboard 116-Key Cherry Keyboard with 3 buttons touchpad
Protection Tempered glass protection to the LCD screen
Operation Temperature 0-50C ( 32-122F)
Approval CE, FCC

Display
Diagonal 19
LCD Resolution 1280 x 1024
Brightness 300 nits
Viewing angle 160/160
Contrast Ratio 500:1
Backing MTBF 50.000 hour under 255C
Frame Rate 60Hz
Click here for Specification

Specification
LCD
Panel TFT 19" LCD Panel
Screen Type TFT
Frequency 60Hz
Contrast Ratio 450 : 1
Viewing Angle 160° (H) x 160 ° (V)
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.2M
Backlight MTBF 50,000 hours under 20 - 30°C
KVM (BHK117-8e/117-016e only)
Computer Connectors 8/16
Connector 15-pin HDB type, Keyboard,mouse, all-in-1
Cascade Level 8 Levels
Max. Access PCs 128
Input VGA Resolution 1920 x 1440
Power Supply
Built-in Adapter 110V - 220V AC Input 12V 5A Output
Cable Legnght 6 ft (182cm)
Safety Approval UL, CE
Diagram


PS/2 Single Console KVM Switch

Back to Top

Model No. BHK119-8e/119-16e
PC Port 8
16
Console Port 1
PC Port Connector
(All Female Type)
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Console Port Connector
(All Female Type)
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Daisy Chain Port Connector
(All Female Type)
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Mouse Conversion (OnlyConsole Port to PC Port) Console PS/2 to each PC port serial mouse
PC selection On Screen Display Manual, Hot Key, Push Button
7 Segment LED 1 Bank LED, 2 PC Port LEDs
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1024 x 768(15"); 1280 x 1024(17")
Bandwidth 200MHz
Daisy Chain MAX Level 8 levels
MAX. PC Connection 120(8ports) / 128(16ports)
Housing Metal
Power Adapter/Power DC 12V 1A / 110/220 AC
Operation Temperature 0~40 ℃
Storage Temperature -20 ~ 60 ℃
Humidity 0~90%, Non-Condensing
Size 19" Rack Mount / 1U
Weight(kg) 15
Dimension 23"(L) x 19"(W) x 1.75"(H)

Ordering Information
Model no. Description
 Net / gross weight
BHK115e 1U height, 15" TFT LCD monitor keyboard drawer
 15kg / 20kg
BHK115-8e 1U height, 15" TFT LCD monitor keyboard drawer with 8 port KVM switch
 16kg / 21kg
BHK117e 1U height, 17" TFT LCD monitor
keyboard drawer
15kg / 20kg
BKP117-8e 1U height, 17" TFT LCD monitor keyboard drawer with 8 port KVM switch
16kg / 21kg
BKP117-16e

1U height, 17" TFT LCD monitor keyboard drawer with 16 port KVM switch
17kg / 22kg
BHK119e 1U height, 19" TFT LCD monitor
keyboard drawer
17kg / 22kg
BKP119-8e 1U height, 19" TFT LCD monitor keyboard drawer with 8 port KVM switch
18kg / 23kg
BKP119-16e

1U height, 19" TFT LCD monitor keyboard drawer with 16 port KVM switch
19kg / 24kg
