Features

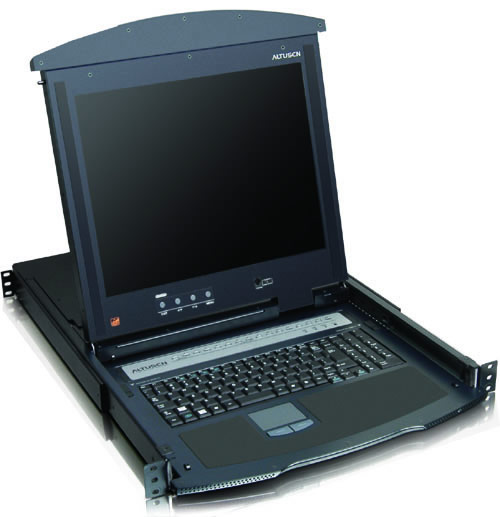

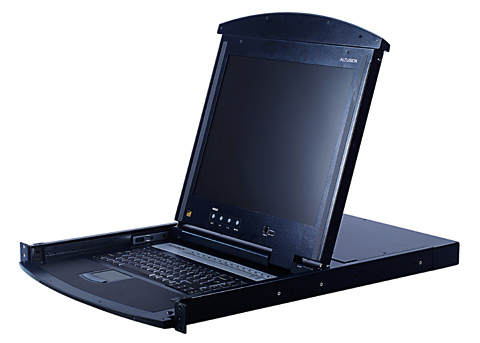

• Integrated KVM console with 15" or 17" LCD monitor - in a Hideaway?housing.
• Hideaway?housing is slightly less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack.

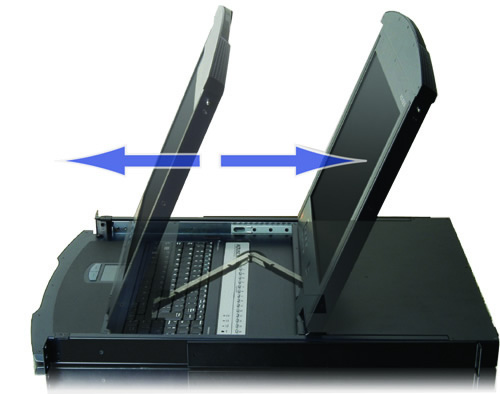

• LCD Monitor component can slide independently of the keyboard/touchpad component.
• Space saving technology - two consoles (one bus) controls up to 16 computers.
• Daisy chain up to 31 additional units to control up to 512 computers from the switch's integrated Hideaway?console.
• No software required - convenient computer selection via mouse driven intuitive On Screen Display (OSD) menus and Hotkeys.
• Auto Scan feature for monitoring user-selected computers.
• Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation.
• Hot Pluggable - add or remove computers without having to power down the switch.
• Two level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profilesfor each.
• DDC Emulation of the LCD Monitor - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD Monitor.
• Upgradable firmware.
• Supports Windows, Linux, Unix, Netware, AIX (RS6000), DOS 6.2 and higher.

Requirements

• Computer: The integrated LCD monitor's maximum resolution is 1024 x 768 (15") or 1280 x 1024 (17"). Make sure that none of the computer resolution settings exceed the LCD monitor's maximum resolution.
• Note1:The KL1116 does not support serial mice. You cannot use Serial-to-PS/2 adapters with the cables. Attempts to do so will not work.
• Note2:The KL1116 supports the installation of a local external console. If you install an external console and wish to extend the distance between it and the switch, CS Custom extender cables are available in various lengths. Contact your dealer for details.

Contents

• 1 KL1116 Hideaway?LCD KVM Switch with Standard Rack Mounting Kit
• 2 Custom KVM Cable Sets
• 1 Firmware Upgrade Cable
• 1 Power Cord
• 1 User Manual
• 1 Quick Start Guide
• 1 Registration Card

This product has a limited warranty of:
12 months for parts and 12 months for labor.
This warranty is provided by Aten Technology. www.aten-usa.com

Support Phone Number: 888-999-aten
