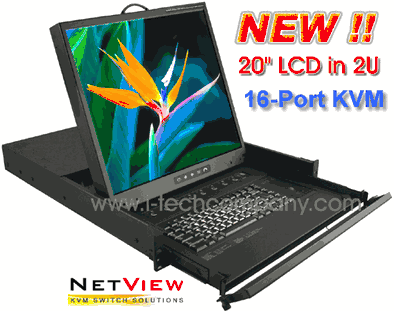

2U Rackmount 20" LCD Monitor Keyboard w/ 16-port KVM optional S-Video & Composite video inputs (Combo Free PS/2 or USB) (Model: NVP22016)

Rack Mount LCD Monitor & Keyboard 16-Port KVM, 2U 20" Monitor w/ optional Touch Pad (Combo Free PS/2 or USB) (NVP22016e/ NVP22016t) & Trackball (NVP22016b / NVP22016d / NVP22016c)
  • Side View
  • Rear View
  • Front Closed
  • Front Closed
  • Rear View
  • Merchanical Drawing

Rack Mount LCD Monitor & Keyboard 16-Port KVM, 2U 20" Monitor w/ optional Touch Pad (Combo Free PS/2 or USB) (NVP22016e/ NVP22016t) & Trackball (NVP22016b / NVP22016d / NVP22016c)

NVP22016
  • Overview
  • Specifications
Product discontinues. call us 888-483-2418 for replace items.



Video



Features and Benefits

  • Combo Free PS/2 or USB KVM (New Features)
  • Using only 2U of EIA rack space (3.5" high), the NVP220 Series rack-mount integrated is designed for space-saving 19" rack-mount applications.
  • Feature a 2U Single Slide allow monitor system and see through cabinet closed glass door
  • Feature a with SamSung LCD Panel. Available in 15"/17"/19" LCD optional with 8 or 16 ports PS/2 KVM
  • Feature a fully functional 95-keys Windows keyboard integrated with 3-buttons trackball/touch pad
  • Equipped with industrial-grade heavy-duty slide-out rails with depth-adjustable rear mounting support
  • PS/2 KVM drawers can be mounted in any standard 19" server rack available in the market.
  • Built-in lock to prevent unauthorized console access.
  • Adjustable bracket up to from 26" to 34"
  • Optional Keyboard Selection
  • Optional USB Keyboard Mouse KVM
  • Optional Video Input Selection
  • Optional Power Input Selection

Options (Click "OPTION" tab above to customize or call 1-888-483-2418 for detail):

Comes with

  • (1) i-Tech NVP220 Series PS/2 KVM drawer unit
  • (16) 3-in-one PS/2 KVM cable, 6-feet. For PS/2 KVM Cables, please specify at Comments during online check out"
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (1) US Power cord
  • (1) Power Adapter 110/220V
  • (1) User Manual
Accessories
  • CV801 : 1U Rackmount 8-ports PS/2 KVM for cascading
  • CV1601: 1U Rackmount 16-ports PS/2 KVM for cascading
  • CVS801 : 1U Rackmount 8-ports USB KVM for cascading
  • CVS1601: 1U Rackmount 16-ports USB KVM for cascading
  • CA-6/CA-10/CA-15: Cascade KVM cables
  • CD-6/CD-10/CD-15: All-in-One PS/2 KVM cables connecting to Servers
  • CB-6/CB-10/CB-15: All-in-One USB KVM cables connecting to Servers
  • SUN-PS2-USB: Converting PS/2 to USB with SUN translating special keys stroke
Specification
LCD
Panel Samsung Grade A LCD Panel
Display Size 20" inch diagonal
Display Area 304.1(H) x 228.1(V) mm
Resolution 1,600 x 1,200 with 60 Hz
Display color 16.7 M
Brightness 300 nits
Contrast Ratio 800:1
Response Time TR=1/ Tf=4 ms
Pixel Pitch 0.255 (H) x 0.255 (V) mm
Viewing Angle 160/ 160 (H/ V)
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language
Signal Input VGA, Analog RGB
Option Video Input S-video & Composite
LCD MTBF 50,000 hrs
Touch Screen Option
Type 5-Wire Resistive Surface Accoustic Wave
Thickness 2.2mm 3mm
Light transmission 87% 90%
Controller Serial / USB Serial / USB
Durability 35 million 50 million
OS Support Windows XP, 2000, NT, 98, DOS and Linux
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
  • Option DC power with 12V, 24V or 48V DC input
  • Environmental
    Temperature 0 to 50 Degree Celsius (Operation)
    -25 to 60 Degree Celsius (Storage)
    Relative Humidity 90%, non condensing
    Shock 50G peak acceleration (11ms, half since wave)
    Vibration 58~500Hz/ 0.98G (11min/ cycle)
    Diagram

    Ordering Information
    KVM Support
    20" LCD series
    NIL
    NVP220

    Console
    8-port
    NVP2208
    16-port
    NVP22016
    8-port
    NVP2208U
    16-port
    NVP22016U

    2 Consoles
    8-port
    NV22082
    16-port
    NV220162
    8-port
    NV22082U
    16-port
    NV220162U
    8-port
    NVIP22082
    16-port
    NVIP220162
