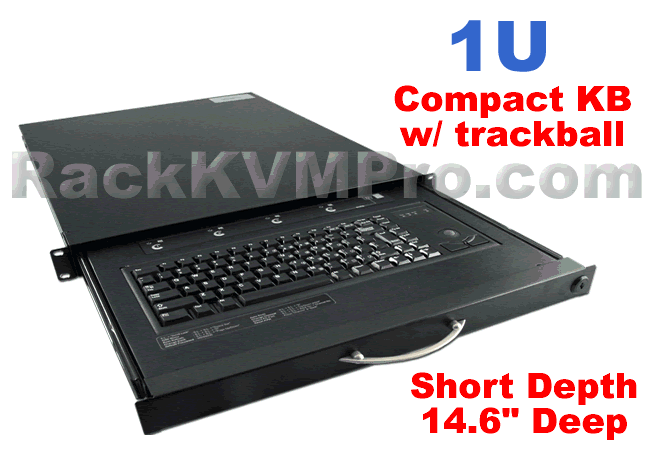

NK2c Rk-2c: w/o KVM Combo DB-15 Compact Keyboard w/cherry keyboard

NK2c Rk-2c: w/o KVM Combo DB-15 Compact Keyboard w/cherry keyboard

NK2c Rk-2c: w/o KVM Combo DB-15 Compact Keyboard w/cherry keyboard

RK2c
  • Overview
  • Specifications
  • Download
Product discontinues. Call us at 888-483-2418 for replacement item.

Descriptions

NK-2 Series is a combination of keyboard, (with KVM switch) into a drawer, with features such as adjustable brackets, selective touchpad or trackball to provide effective assistant for an administrator to control multiple PCs.

Features

  • 1U, standard 19" rackmount keyboard drawer
  • Lightweight construction
  • Lockable drawer to secure the keyboard & mouse
  • Five keyboard selections support multiple languages
  • Large padded wrist-rest for "d" & "t" style keyboard
  • Adjustable mounting brackets from 390 to 660 mm
  • Slide rails have fixed position to prevent movement of the keyboard
  • All mounting hardware included
General
Form factor 1U rack mounting on slide-out rails, short depth
Color Black
Compatilbity Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Server-side Interface HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS
Compatilbity Adjustable ranges from 15.3" to 26" (390 to 660mm)
Input Device
e model notebook type keyboard with 2-button touchpad
b model notebook type keyboard with 3-button mini trackball
c model Cherry PS/2 keyboard with 2-button trackball
d model compact keyboard with 17-key numeric keypad & 3-button trackball
t model compact keyboard with 17-key numeric keypad & 2-button touchpad
Regulatory Approval
EMC Approved FCC, CE, and VCCI
Power
Integrated KVM 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
EMC Approved FCC , CE and VCCI
Integrated KVM 8 or 16 KVM ports, HD15 female VGA port, HD15 female IP console port, RJ45 type (IP KVM model) Remote console port, RJ45 type (2-console model) Serial port, DB9 (IP KVM model) Virtual Device port, USB type B (IP KVM model) PS/2 cascade port, 2 Mini DIN & HD15 female USB cascade port, HD15 female DC power input, Plug-round type
Without KVM Conosle p ort, HD15 female DC power input, Plug-round type
Enviromental
Temperature 0 to 50 Degree Celsius (Operation); -25 to 65 Degree Celsius (Storage)
Relative Humidity 90%, non condensing
Shock 50G peak acceleration (11ms, half since wave)
Vibration 58~500Hz/ 0.98G (11min/ cycle)
Mechanical
Dimension   44.2 x 55 x 4.45 cm / 17.4 x 21.6 x 1.75 inch (WxDxH)
Weight Approximate 6 kg
Package Information
Carton Box 50 x 59 x 11 cm / 20 x 23.2 x 4.3 inch (WxDxH)
Weight Approximate 8 kg
