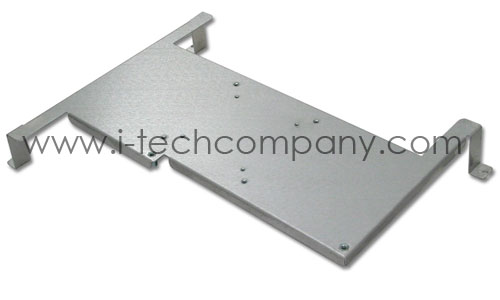

Panel Mount Monitor Accessory Bracket (Model: HPMVS19)

The HPMVS series accessory mounting brackets allow attachment of thin clients, small PC's, KVM extenders, and other devices to the rear of HPM Panel Mount monitors.

The provided 75mm and 100mm VESA mounting patterns can be used, or the user can drill custom holes in the panel.

The bracket supports up to 25 lbs. and can be shipped from iTech on the monitor or installed by the customer.

Features

• Attaches to the rear of HPM17", 19", 20", and 22" Panel Mount monitors
• Allows for mounting of thin clients, small PC's, KVM extender receivers, or other customer hardware
• Can be shipped from iTech on the monitor or installed by the customer using the supplied screws and installation instructions
• Comes with standard VESA mounting holes (75mm and 100mm), or customer can drill their own
• Extends only 1/2" from the rear of the monitor

Specifications

• Constructed of sturdy 16-gauge aluminum
• Supports up to 25 lbs.
• Panel space for mounting (W x H)
• 17" monitor - 13" x 5.35"
• 19" monitor - 15" x 5"
• 20" monitor - 17" x 7"
• 22" monitor - 19.6" x 7"
• Total depth (including bracket)
• 17" monitor - 65.2 mm (2.57")
• 19" monitor - 67.2 mm (2.65")
• 20" monitor - 73.4 mm (2.89")
• 22" monitor - 63.1 mm (2.48")
• Weight - 0.6 lbs. (0.273 kg

Mechanical Drawings

• HPMVS17 for HPM17 models
• HPMVS19 for HPM19 models
• HPMVS20 for HPM20 models
• HPMVS22 for HPM22 models
