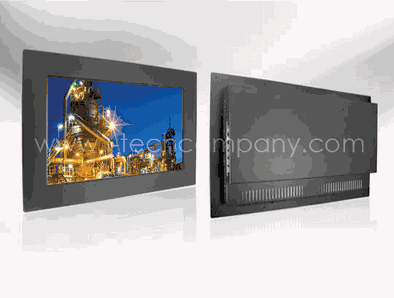

Panel Mount, 22" LCD monitor, 1680x1050, LED 250 nits, VGA input (Model: EPMW2200)

Panel Mount, 22" LCD monitor, 1680x1050, LED 250 nits, VGA input (Model: EPMW2200)

Panel Mount, 22" LCD monitor, 1680x1050, LED 250 nits, VGA input (Model: EPMW2200)

EPMW2200
  • Overview
  • Download
EPM Series: Industrial Panel Mount Metal Housing LCD Monitor (Optional Integrated Touchscreen/Front IP65/NEMA4x/Front Stainless steel bezel and more..)


Features Highlights:

  • 1. Metal 5mm Panel Mount for easy installation with stud mount and Clamps mount (Optional for Front AR Glass or Vandal Resistant glass)
  • 2. Optional for Resistive/ Capacitive/ SAW/ IR/ Projective Capacitive Touch screen
  • 3. Auto Video Signal ON / OFF Auto Always Power On
  • 4. Optional Stainless steel Bezel 3mm thick.
  • 5. Optional Integrated IP65 Front Panel Mount with water proof sealed Gasket

  • 1. Side OSD buttons can prevent unnecessary setting changes.
  • 2. VESA Mounting Hole Pattern
  • 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
  • 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
  • 5. Optional for RS232 Remote Control Protocol: Command Code to set system


Features:

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • VGA connector with optional AV.SV.AV-Looping
  • Available with auto-brightness sensor offers application in day and night.
  • Optional build-in touch screen for interactive application
  • Complete custom design/solution for OEM customers



Specifications:

Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 22" viewable diagonal area
Active Area / Pixel Pitch 473.8(H) x 296.1(V) mm / 0.282(H) x 0.282(V) mm
Native Resolution / Colors 1680(H) x 1050(V) / 16.7M
Brightness / Contrast 250 cd/m2 (typ) / 1000 : 1
Response Time ≤ 5 ms
Viewing Angle (typical) H.170o (- 85o ~ + 85o) , V. 160o(- 80o ~ + 80o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features   Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 24.7 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 9 Kgs / 10.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch

SV + AV + AV_Looping

High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming


Diagram:




Clamp Mount (Optional)




LCD Options

  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.
The benefits of LED-backlit LCDs include:
  • Longer operating life
  • Low power consumption
  • Environmental friendliness (Mercury [Hg] free)
  • Greater resistance to mechanical shock (no glass tubes)
  • Quicker illumination to stable brightness
  • Wide dimming ratio (to <1%)
  • Reduction of electronic noise (low DC drive voltage)

  TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

Four-Wire
Resistive
Five-Wire Resistive
Pen Touch
Capacitive
Surface Wave(Saw)
Infrared Touch (Ir)
PRODUCT SIZE 1.7" - 24" 10.4" - 24" 15" - 19" 12" - 24" 10.4" - 30" 10.4" - 42"
TOUCH LIFE 1 - 2 million
touches
30 - 35million
touches
100 million
touches
100 million
touches
50 million
touches
Long-term reliability
SCRATCH RESISTANCE Hard Coated Hard Coated Hard Coated
(SiO²)
Hard Coated
(SiO²)
Glass Overlay
Moh's hardness rating of 7
Glass Overlay
Moh's hardness rating of 7
CONTAMINANT RESISTANCE Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD Finger, Gloved Hand, Stylus Finger, Gloved Hand, Stylus Stylus Pen Finger Finger, Gloved Hand, Soft pliable stylus Finger, Gloved Hand, Stylus
CONTROLLER USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232



  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

RS-232 Option for LCD/LED monitors.




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor
