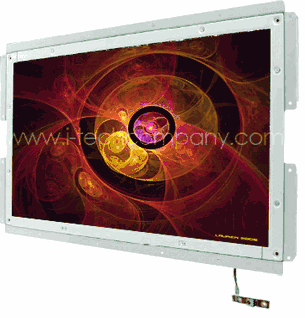

Open Frame customized 26" LCD TV/PC/Video/Audio (Model: WOPV2600A2)

Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

Panel
Model Name	WOPV2600A2

Type	26" color active matrix TFT LCD

Active Display Area(mm)	575.7 (H) x 323.7 (V)

Pixel Pitch(mm)	0.421 (H) x 0.421 (V)

Number of pixels	1366 x 768

Contrast Ratio	250:1 (typ.)

Display Color	16.7M (8bits/color)

Brightness	450 (typ.)

Viewing Angles	-88~88 (H); -88~88 (V)

Response Time	6.5ms

Input Specification
TV	1x F(or IEC) connector for ANTENNA or CATV signal

Video	1x Composite(RCA) 1x S-video(4 pin Mini-DIN) 1x Component(YPbPr)

PC	RGB analog 15 pin D-sub

RGB Frequency	H:31.5~80kHz, V:60~75Hz

Audio	1x 3.5mm stereo phone jack(for PC) 1x L/R RCA(for video)

Digial	DVI-D

Tuner	NTSC or PAL

AUDIO OUT Specification
Speakers	2x5Watt

POWER Specification
Voltage Consumption	AC 100~240V,Universal,±10% 100 W typical, normal operation

CONTROL FUNCTIONS
Basic	Power, Volume +/-, Channel +/-, Source, Menu

TV Mode	MTS, TV/CATV, Auto Scan, Channel Memory, Channel Delete, Last Channel Recall, Timer for sleep(optional)

PC Mode	Brightness, Contrast, Color Temperature, Gamma, Scaling, Auto Adjust, Phase, Clock, Position, Auto color, PIP/POP,Reset

Video Mode	Brightness, Contrast, Scaling, Hue,Saturation, Sharpness, Color Temperature, PIP/POP,Reset

Audio	Volume, Bass, Treble, Balance, Mute

OPERATING CONDITIONS
Temperature Humidity	0-50°C 5-90%(non-condensing)
