(This product is Non-Returnable)

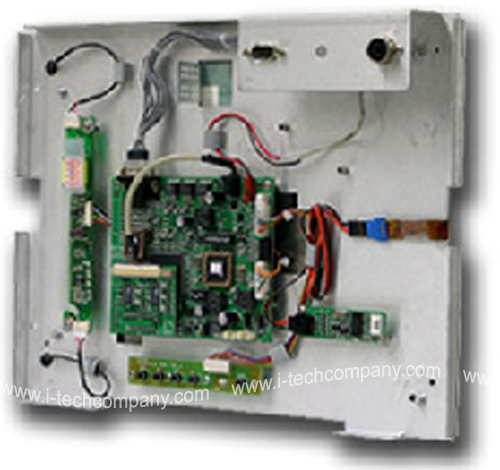

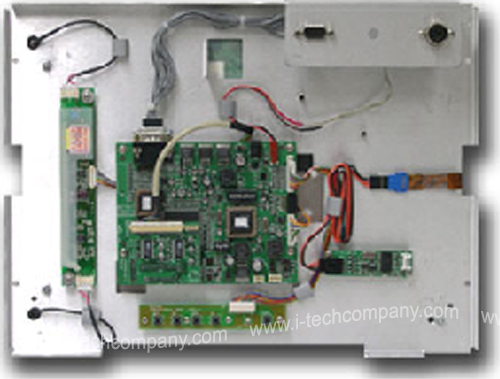

COP1500 is an Industrial open-frame, LCD touch screen monitor utilizing a 15" diagonal color TFT LCD as display panel and a resistive touchscreen as input device. Open Frame Touch screen communication to CPU is RS232 or USB. Video input is VGA. Our added value services include integration of other types of Open frame touch lcd screen panel display such as digital resistive, eight-wire analog as well as add-ons such as environmental gaskets, anti-vandalism overlays and EMI/ESD shielding. Please contact our sales department for our custom packaging services. Optional 12VDC power supply with appropriate connectors is available and recommended.
| Open Frame Touch Screen Display Specifications |
| Display Size |
15.0" Diagonal 304.1(H)x228.1(V)mm |
| Brightness |
250 cd/m ² |
| Contrast Ratio |
300 : 1 |
| Display Colors |
16.7M (true) |
| Number of Pixels |
1024 x 768 |
| Pixel Arrangement |
RGB Vertical Stripe |
| Pixel Pitch |
0.297(H) x 0.297(W) |
| Display Mode |
Normally White |
| Viewing Angle |
70/70/55/65 |
| Interface |
VGA |
| Response Time |
25ms |
| Backlight |
4 CCFT |
| Outline Dimension (W x H x D) |
331.6 x 255.3 x 18 mm |
| Weight |
1800 g |
| Power Supply Voltage |
-0.3 min. +21 max. |
| Operating Temperature |
0 to +50 °C |
| Storage Temperature |
-25 to +60 °C |
