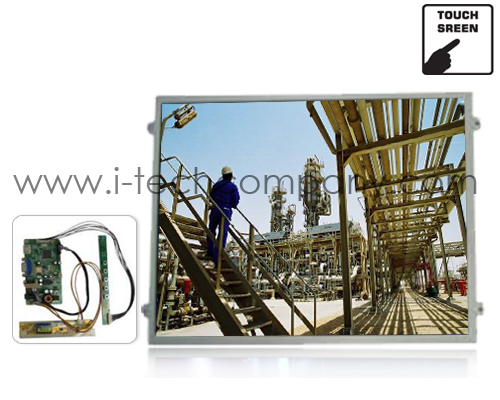

12.1'' 4:3 LED Open frame loose kit module, LCD panel, Inverter, OSD, LVDS, AToD board, DC adapter, High Brightness,VGA Input w/ Capacitive Touch (Finger only) and USB Controller (Model: TSK1210XHB-TC)

12.1'' 4:3 LED Open frame loose kit module, LCD panel, Inverter, OSD, LVDS, AToD board, DC adapter, High Brightness,VGA Input w/ Capacitive Touch (Finger only) and USB Controller (Model: TSK1210XHB-TC)

12.1'' 4:3 LED Open frame loose kit module, LCD panel, Inverter, OSD, LVDS, AToD board, DC adapter, High Brightness,VGA Input w/ Capacitive Touch (Finger only) and USB Controller (Model: TSK1210XHB-TC)

TSK1210XHB-TC
  • Overview
  • Download

Features:

  • VGA Input / Optinal DVI Input
  • Optional RCA Composite Video + Speaker / Optional HDMI Input
  • Optional 5-Wire Resistive / Capacitive / SAW Touch supports all Windows / Linux OS
  • 4:3 Screen High LED Back-Light 1000nits
  • 4:3 LCD Panel with original resolution 1024x768


Specifications:

Screen size 12.1
Dimensional Outline (typ.) 274.5(W) x 197.5 (H) x 3.5max.-5.45max(D) mm
Number of Pixels 1024(W) x 768(H) pixels
Active Area 245.76(W) x 184.32(H) mm
Pixel Pitch 0.24(W) x 0.24(H)
Weight (approximately) 225 g (typ)
Backlight Single CCFL, Sidelight type
Supply Voltage
  (VDD) -0.3 ~ 4.0 V
  (VFL) 0 ~ 2.0 kV(rms)
FL Driving Frequency (fFL) 100kHz
Input Signal Voltage (VIN) -0.3 ~ VDD+0.3V
Operating Temperature 0 ~ 50 C
Storage Temperature -20 ~ 60 C
Storage Humidity 10 ~ 90 %(RH)
