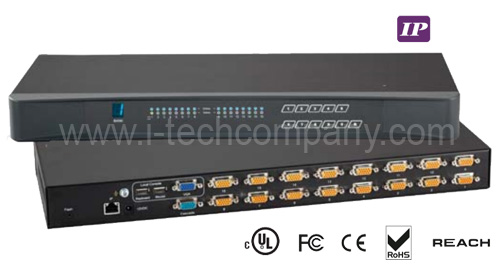

NVIP-802:  1User, 1 local user & Remote Access with 8-port Analog KVM over IP Switch
  • Front View
  • Back View
  • Back View
  • Accessories
  • Certificate Setting
  • SSL certificate upload
  • Serial Port
  • Date and Time
  • Event Log
  • Device Info
  • Event Log List
  • Update Firmware
  • Unit Reset
  • Main Page
  • Remote Options
  • Video Setting
  • Encoding
  • Telnet Console
  • KVM Console
  • Setup Password
  • IP KVM Setup
  • Dynamic DNS
  • Device Security
  • Login
  • Set User

NVIP-802: 1User, 1 local user & Remote Access with 8-port Analog KVM over IP Switch

NVIP-802
  • Overview
  • Specifications
  • Download

Combo DB-15 IP KVM Benefits

  • Combo DB-15 KVM with either 8 or 16 ports in 1U
  • IP remote access across the world wide web
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Support resolution up to 1920 x 1080
  • SUN 1152 x 900 resolution compatible
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Cost efficient remote server management between national / global sites


Switch Features & Options

  • Mix legacy PS/2 servers with newer USB and SUN solutions
  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • 12V, 24V and 48V DC Power options






Ordering Information

Console Local Remote 8-port 16-port
1 0 1 NVIP802 NVIP1602



KVM Specification

KVM Port
Number of ports: 8 or 16
Connector: DB-15 combo connector
Connectivity: Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet
Local Console
Graphic Connector: 1 x DB-15 VGA
Resolution: Up to 1920 x 1080 /1920 x 1200
Input device: 2 x USB type A for keyboard & mouse
Local Console
Connector: RJ45 Ethernet
User management: 15-user login, 1 x active user
Network protocol: DHCP/BOOTP/DNS
Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR
Resolution: Up to 1600 x 1200
Browser: IE, Firefox, Safari, Netscape
Expansion: Up to 128 servers by 8-level cascade
Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix

Power
Input: Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 24 Watt, Standby 5 Watt
Regulatory :
Safety: cUL, FCC & CE certified
Environment: RoHS2 & REACH compliant
Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58-100Hz / 0.98G (11ms / cycle)
Product Information
Dimension (W x D x H): 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch
Net weight: 2.3 kg / 5.1 lb (NVIP802 )
2.5 kg / 5.5 lb (NVIP1602)
Packing Information
Dimension (W x D x H): 500 x400 x90 mm / 19.7 x 15.7x3.5 inch
Gross weight: 3.8 kg / 8.4 lb (NVIP802 )
4.1 kg / 9 lb     (NVIP-1602)



KVM port connection




NE-6 / NE-10 / NE-15
■  6 / 10 / 15 ft Combo KVM cable
■  Support PS/2 or USB server



IP & Local console connection






KVM Cascade

■  Cascade up to 8 levels, 128 servers
■  Cascading multiple KVM with CBC-6 cascade cable

Detail Specification :
PC Port 8
Console Port 1
PC Port Connector (All Female Types) VGA HDDB 15-pin (shared with PS/2 keyboard and Mouse)
Console Port Connector (All Female Types)
Local Console: PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Remote Console: RJ-45 8P8C
Daisy Chain Port Connector (All Female Types) PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Serial Port (DB9 pin Male) 1
LAN port (RJ-45 8P8C) 1
10BASE-T Ethernet uses Category 3/4/5/5E/6 UTP
100BASE-T Ethernet uses Category 5/5E/6 UTP
Reset button 1
PC selection On Screen Display Menu, Hot Key, Push Button
PC Port LED 8
Bank 7 segment LED 1
On Screen Display Control Yes
Scan Intervals 5~99 sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution Local Console: 1920 x 1440
Remote Console: 1280 x 1024
Daisy Chain MAX Level 8 levels
MAX PC Connection 120
Housing Metal
Power Adapter DC 5V, 2.5A
Operarion Temperature 0~50¢XC
Storage Temperature -20~60¢XC
Humidity 0~80¢XC, Non-Condensing
Size 19" Rack Mount / 1RU
Weight 4.4 lbs / 2.0 kg
Dimension (L x W x H)
inch 16.14 x 6.46 x 1.81
cm 41 x 16.4 x 4.6
System Requirements:
Local Console Side One VGA Monitor
One Keyboard
One Mouse
Network Side 10/100Mbps Ethernet or Modem
Remote Console Side One computer
Computer side 8 PCs with 8 3-in-one cables (One HDDB 15-pin male to one HDDB 15-pin and two Mini Din 6-pin PS/2 cables)
