| NR6042 |
Ultra Rack NR Series |
|
 |
 |
FEATURES |
|

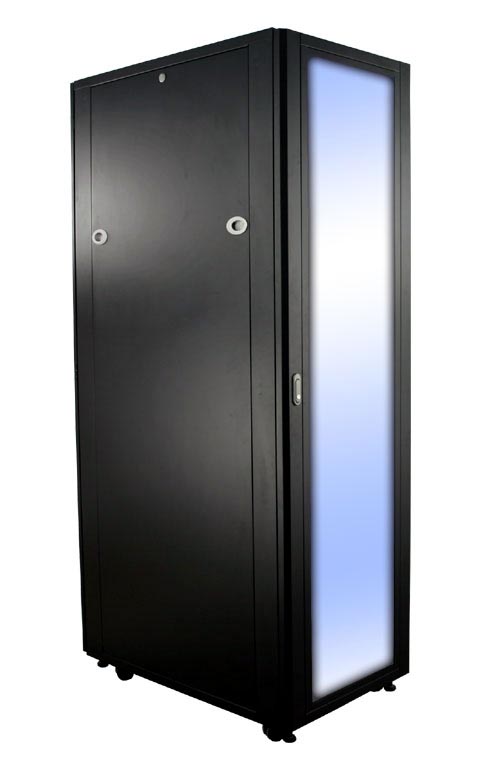

42U 42 " Deep Server Rack Enclosure w/Sides Black |
|
80"H x 24"W x 42 "D |
|
Front Door with toughened safety glass, rear vented stell door |
|
Perforated Roof Top Features Four 5.5" x 2" cutouts for cable entry |
|
Lockable front & Rear doors and side panels |
|
Guaranteed Compatibility w/Dell, HP, SUN & IBM |
|
Heavy duty framework holds 1300lbs |
|

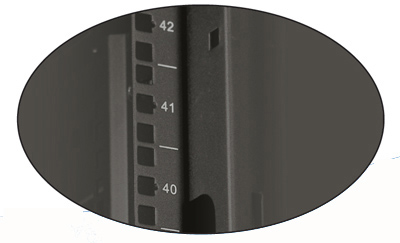

Unit Markings at front & Rear |
|
Includes Caster base and Leveling feet |
|
 |
|
| |
Compatibility |
|
|
|
|
|
Description |
|
|
Universal Storage
The NR Series rack provides an ideal equipment enclosure, environment, designed around universal standards, for the compatible mounting of both OEM manufactured servers, from the leading vendors such as IBM, HP, Dell and Sun , as well as all 19" rack mountable solutions. |
|
| Manufacturer |
Series |
| AppleTM |
XserveTM |
| DELLTM |
PowerEdgeTM |
| DELLTM |
PowerVaultTM |
| HPTM |
ProLiantTM |
| IBMTM |
xSeriesTM |
| SUNTM |
Sun Fire TM |
| SUNTM |
Sun Fire Blade TM |
|
|
|
|
|
|
SUN TM
Sun Fire TM Server
(V120 shown) |
|
|
IBM TM
xSeries TM
(x305 shown) |
|
 |
DELL TM
PowerEdge TM
(2600 shown) |
|
|
 |
|
| |
Critical Advance Cooling |
|
|
|
|
|
Description |
|
|
NR Series provides advance storage flexibility while ensuring that versatile cooling requirements are fully catered to meet these emerging thermal challenges.
NR Series achieves significant cooling efficiency through a number of outstanding design and engineering features. The expanded steel design of all enclosure doors give 80% perforated area that ensures the ultimate air pattern and flow
|
|
Photograph |
|
|
|
|

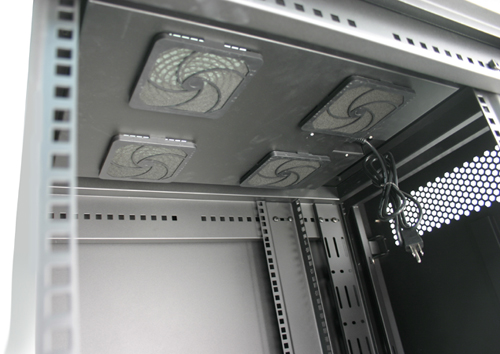

Fan Top |
|
|
Perforated Top |
|
Side Panel
|
|
|
 |
 |
|

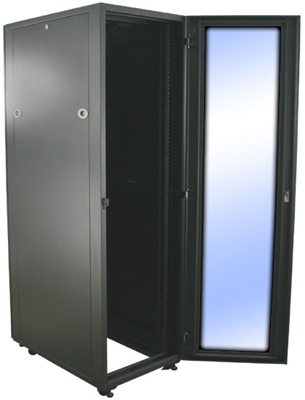

Glass Front
Door |
Frame |
Rear Vented Door
|
|
|
|
|
|
|
|
| |
Safe Environment |
|
|
|
|
|
Safety |
|
|
Safety is the Key Concern for enclosures and data center environments. The NR Series provides high and structural stability, provides high end structural stability, tested through sequential loading, ensure it provides a safe working environment. For ease of installation and transport the NR series has heavy duty rated castors and is static load rated to 500 kgs.
|
|
Restricting Access: |
|
|
NR Series offers high secure solutions for access management. These include a key lockable front door, rear door, and side panels as well as top cover. These locks can be keyed identically or with different keys allowing you to manage security levels.
|
|
Photographs |
|
|
|
|
|
|
|
|
| Specification |
| Color |
Black |
| Product
Height |
2020
mm / 80" |
| Product
Width |
600
mm / 24" |
| Product
Length |
1075
mm/ 42 " |
| Internal
Length |
1000
mm / 39" |
| Industry
Standards |
EIA
RS310-C |
| Internal
Rack Height |
42U |
| Weight
Capacity |
1300
lb [590 kg] |
| External
height |
80
inches |
| Internal
width |
19
inches |
| External
width |
24
inches |
| Internal
depth |
39
inches |
| External
depth |
42
inches |
| Shipping
dimensions |
84.5H
x 26.5W x 44D inches |
| Shipping
(Package) Weight |
289
lb [131.36 kg] |
| Key
Lock |
Yes |
| Package
Contents |
Black
42Ux38" NR6042
Server Rack Cabinet
Sets of keys, 1 for side panels, 1 for front door
Bag of 50 cage nuts, 50 mounting screws
Vented ceiling panel
"L" Shaped Mounting Rails
CastersLevelers
Grounding Cables x 5
Unit Marking at Front and Rear Mounting angles
|
| |
Package Option |
|
|
|
|
|
Photographs |
|
|
|
|
|
Package Options |
|
|
- Standard Package - Full Set
- Package A - Basic Frame : w/o doors and side panels
- Package B - Basic Frame + Doors : w/o side panels
- Package C - Basic Frame + Side Panel : w/o doors
|
|
Packing Form |
|
|
- Individual Packing, Kit of 3 Packing and Assembly Packing
available.
- Kit of three packing bundles with toughened paper pallet ensures
excellent stability.
- Ideal for overseas transportation
- Better safety and protection can be provided
|
|
| Model No. |
Width |
Depth |
Height |
| |
Overall |
Effective |
Overall |
Effective |
| mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
| NR-6617 |
17U |
600 |
24'' |
670 |
26'' |
600 |
24'' |
910 |
36'' |
845 |
33'' |
| NR-6817 |
600 |
24'' |
870 |
34'' |
800 |
31'' |
910 |
36'' |
845 |
33'' |
| NR-6622 |
22U |
600 |
24'' |
670 |
26'' |
600 |
24'' |
1,132 |
45'' |
1,067 |
42'' |
| NR-6822 |
600 |
24'' |
870 |
34'' |
800 |
31'' |
1,132 |
45'' |
1,067 |
42'' |
| NR-6627 |
27U |
600 |
24'' |
670 |
26'' |
600 |
24'' |
1,354 |
53'' |
1,289 |
51'' |
| NR-6827 |
600 |
24'' |
870 |
34'' |
800 |
31'' |
1,354 |
53'' |
1,289 |
51'' |
| NR-6637 |
37U |
600 |
24'' |
670 |
26'' |
600 |
24'' |
1,798 |
71'' |
1,733 |
68'' |
| NR-6837 |
600 |
24'' |
870 |
34'' |
800 |
31'' |
1,798 |
71'' |
1,733 |
68'' |
| NR-6937 |
600 |
24'' |
970 |
38'' |
900 |
35'' |
1,798 |
71'' |
1,733 |
68'' |
| NR-6642 |
42U |
600 |
24'' |
670 |
26'' |
600 |
24'' |
2,020 |
80'' |
1,955 |
77'' |
| NR-6842 |
600 |
24'' |
870 |
34'' |
800 |
31'' |
2,020 |
80'' |
1,955 |
77'' |
| NR-6042 |
600 |
24'' |
970 |
42'' |
900 |
39'' |
2,020 |
80'' |
1,955 |
77'' |
|
|
|
This product has a limited warranty of:
12 months for parts and 12 months for labor.
This warranty is provided by Ultra Rack Enclosures USA Inc.. www.UltraRackUSA.com
Support Phone Number: 1-888-580-RACK(7225)
