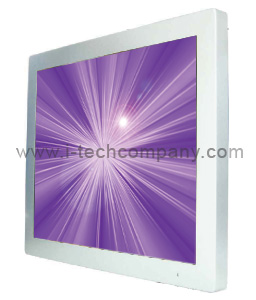

Networked Digital Signage 17" DHCP mode network player (Model: WCHNP1700M1G3)

Networked Digital Signage 17" DHCP mode network player, Auto media update via Ethernet,Real Time RSS Feed,Layout Designer 1GB CF Card. Content update Networking(By Ethernet/WLAN) (Model: WCHNP1700M1G3)

Networked Digital Signage 17" DHCP mode network player, Auto media update via Ethernet,Real Time RSS Feed,Layout Designer 1GB CF Card. Content update Networking(By Ethernet/WLAN) (Model: WCHNP1700M1G3)

Inquiry/Quote Request
WCHNP1700M1G3
  • Overview
  • Download
   WCHNP Software Videos

Features

• DHCP mode network player
• Auto media update via Ethernet
• Strong group management
• Client billing log
• Real Time RSS Feed



Specification
Screen Size 17"
Active Display Area (mm) 337.92 (H) x 270.34 (V)
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Panel Resolution (pixels) 1280x1024
Contrast Ratio 800:1 (typ.)
Display Color 16.7M (6bits+FRC)
Brightness (CD/m^2) 300 (typ.)
Viewing Angles (CR >=10) -80~80 (H); -80~80 (V)
Synchronization Range_Horizontal / Vertical 31.5~80.0KHz / 60~75Hz
Recommended Resolution 1280x1024@60HZ,75HZ
Storage Media CF(512MB) or Optional with bigger capacity 2.5" Hard Disk(Need to be Linux ext2 Format)USB Flash Drive
Content Update Networking(By Ethernet/WLAN)
Power Source AC100~240 V, Universal,±10%
Power Consumption 46W typical,normal operation
Power Management VESA DPMS Compliant
VESA Mounting Yes
Mechanical Chassis
Video Format Support MPEG1,MPEG2,MPEG4
Graphic Format Support JPEG,BMP
Text Banner Variable scrolling speed and position
Audio Output Stereo RCA 2Wx2
Control Input RS232C
Network Connections 10/100Base-T(RJ-45) miniPCI for 802.11b/g WLAN(Optional)
Portrait Mode Support Yes



Software Comparision Table

Feature
GOLD
Group Management
Program Scheduling
Picture Rotation
Ticker Transition Effect
Playlist Preview
Get Client / Group log
Realtime Client Status
Auto Media Update
Auto Time Sync
Client IP mode (Fixed / DHCP)
Realtime RSS Feed
Suggested No• of• players
max• 2000
Multiple Zones Display
max• 5 Zones
Background Pictuer Setting
User-defined Layout
User-defined Trigger Event
Dynamic Pictures
N/A
Dynamic HTML
N/A
Synchronized Zones
N/A
Flash
N/A
PPT Slideshow
N/A




Media Update Method Diagram
