MRP7150V

Rack LCD 7U Rackmount 15" LCD Flat Panel w/ 1 x VGA,  2 x RCA composite input and 1 x S-video input (MRP7150V)

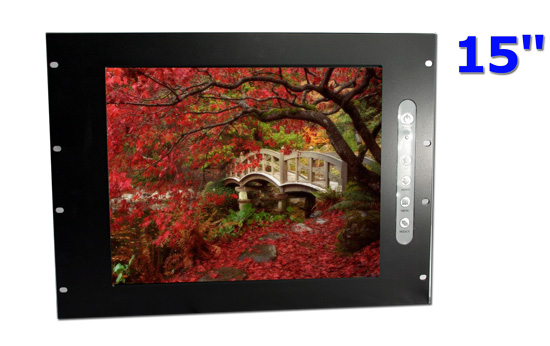

  • Front View
  • Front View
  • OSD View
  • Side View
  • Side View
  • Video Output/Input
  • Video Output/Input
  • Back View
  • Video Output/Input

Rack LCD 7U Rackmount 15" LCD Flat Panel w/ 1 x VGA, 2 x RCA composite input and 1 x S-video input (MRP7150V)

MRP7150V
  • Overview
  • Download
LCD
(MODEL: MRP7150)
RESOLUTION 1024 x 768 (XGA)
SCREEN SIZE 15.0" (38.1 cm) Diagonal
PANEL TYPE TFT Active Matrix
COLOR 262K
BRIGHTNESS 200 Nits
CONTRAST RATIO 300:1
PIXEL PITCH 0.297mm x 0.297mm
ACTIVE AREA W(304.1 mm) * H(228.1 mm)
INPUT SIGNAL RESPONSE TIME 10ms (Max)
VIDEO SIGNAL RGB Analog, 0.714 Vp-p, 75 Ohm
SYNCHRONIZATION VGA-XGA, NTSC/PAL/SECAM
HORIZONTAL FREQUENCY 24 ~~ 61 KHz
VERTICA FREQUENCY 56.0 ~~ 75.0 Hz
CONNECTOR VIDEO SIGNAL 15-Pin D-SUB
NTSC/PAL Video-in RCA Connector x 2, S-Video Connector x1- Option
NTSC/PAL Video-out RCA Connector x1 - Option
USB N/A
AUDIO LINE IN N/A
LINE OUT N/A
SPEAKER N/A
OPTION TOUCH SCREEN Resistive / Capacitive
POWER SUPPLY   Input AC100-240V 50/60 Hz, Output: DC
12V
POWER MANAGEMENT   VESA DPMS
PLUG & PLAY   DDC2B (VESA Standard)
PHYSICAL DIMENSIONS (W x H x D) 19 " x 12.2 " x 2.3" (483 x 310 x 58.5 mm)
WEIGHT 8.8 Lbs. (4 Kgs.)
