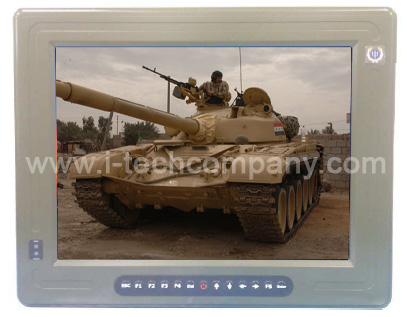

Rugged Military Grade 17” XGA IP65 compliant front Panel PC i5-3427U 1.8Ghz (Model: AMil-1700PC)

Rugged Military Grade 17” XGA IP65 compliant front Panel PC i5-3427U 1.8Ghz (Model: AMil-1700PC)

Rugged Military Grade 17” XGA IP65 compliant front Panel PC i5-3427U 1.8Ghz (Model: AMil-1700PC)

AMil-1700PC
  • Overview
  • Download

Features

• 17” XGA(1024x768) High Definition Resolution
• New 3rd Generation Intel Core i5 Processor
• Military connector designed
• Resistive type Touch-Screen supported
• Giga Lan supported
• IP65 compliant front panel
• MIL-STD-810G Certificated
• Wide Operation temperature(-20°C~60°C)
• Windows 7 supported
• Wide range 18~36 VDC input



Specifications

Item Description
LCD Size 17”
Max Resolution 1280 x 1024
Brightness (cd/m²) 350 cd/m²
Contrast Ratio 700:1
LCD Color 16.7M
Pixel Pitch (mm) 0.264(H) x 0.264(V)
Viewing Angle (H-V) 160º/160º
Backlight MTBF 40000 hrs
CPU Intel Ivy-Bridge CPU i5-3427U 1.8Ghz
Chipset Intel QM77
RAM 16GB DDR3 SO-DIMM supported
SSD SATA 64GB SSD
I/O Ports RS-232 COM Port (RXD,TXD,GND) x 1
I/O Ports Giga LAN x 1
USB 2.0 x 1
Connector Power
(Round Military Connector)
Power ( MS3112E 8-4P) x 1
I/O signals ( MS3474W16-26P) x 1
Construction Material All housing Aluminum alloy 6061-T6
Front Panel Color Army Green or Navy Gray
Dimensions (W x H x D) 410 mm x 360 mm x 69 mm
Operation Temperature (°C) -20°C ~ 60°C
Storage Temperature (°C) -40°C ~ 70°C
Net Weight 8.3 Kg
IP Level IP65
Touch Screen Resistive Type
Power Input 18 ~ 36VDC
Certification MIL-STD-810G High Temp., Method 501.5
MIL-STD-810G Low Temp., Method 502.5
MIL-STD-810G Vibration Method 514.6
MIL-STD-810G Shock Method 516.6
