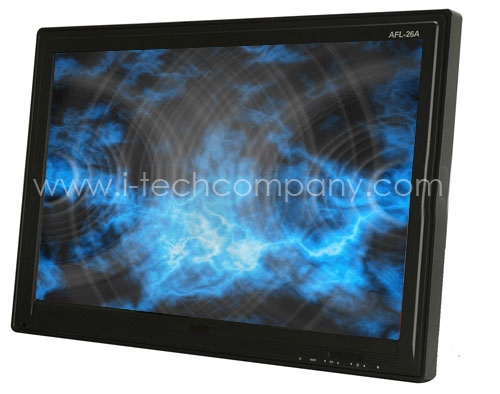

26" 350cd/m² WUXGA panel PC with Core™2 Duo T7500 2.2GHz or Celeron® M 550 2.0GHz CPU (Model: AFL-26A-965)

26" 350cd/m² WUXGA panel PC with Core™2 Duo T7500 2.2GHz or Celeron® M 550 2.0GHz CPU (Model: AFL-26A-965)

26" 350cd/m² WUXGA panel PC with Core™2 Duo T7500 2.2GHz or Celeron® M 550 2.0GHz CPU (Model: AFL-26A-965)

AFL-26A-965
  • Overview
  • Download
Features
  * WiFi 802.11b/g/n connection (26" with invisible antenna)
* Built-in two speakers
* Built-in Bluetooth technology rids systems of cables and allows wireless
* connection to peripheral devices like head phones, printers, barcode readers or game controllers
* The Ambient Light Sensor helps conserve energy
* VESA-mountable for flexibility in mounting and deployment
* Comprehensive set of USB and full legacy I/O ports for peripherals and accessories
* Support for Windows Windows XP Embedded (Optional)

Specifications

LCD Size 26"
Max Resolution 1920 x 1200
Brightness (cd/㎡) 350
Contrast Ratio 1500:1
LCD Color 16.7M
Pixel Pitch (mm) 0.2865(H) x 0.2865(V)
Viewing Angle (H-V) 176/176
Backlight MTBF 50000
SBC Model AFLMB-9652-R10
CPU CeleronR M550 2.0GHz CPU
Core?2 Duo T7500 2.2GHz CPU
Chipset IntelR GME965 Chipset
RAM Supports two 2GB (Maximum) 400MHz DDRII SO-DIMM (System max. 4GB)
I/O Ports and Switches 1 x RS232 COM Port
1 x RS-232/422/485 COM port
1 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x VGA Port
SSD CF TypeII
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 6W + 6W AMP
Expansion 1 x Wireless Lan Module (Mini PCIe Interface)
1 x Bluetooth Module (USB Interface)
Construction Front Panel ABS + PC Plastic front frame
HDD Drive Bay 1 x 2.5" SATA HDD bay
Construction Material ABS + PC Plastic front frame
LED Function 1 x Power ON/OFF LED on Front Panel
Mounting Wall, Stand and Arm, VESA 200mm x 100mm
Front Panel Color Black C
Dimension (WxHxD) (mm) 623 x 425 x 100
Operation Temperature 0oC ~40oC With HDD
0oC ~45oC With CF Card or SATA interface 2.5" SSD HDD
Storage Temperature (℃) -20oC ~ 60oC
Net Weight 12 Kg
IP Level(front panel) IP64
Touch Screen Surface Accoustic Wave Type (optional)
Smart OSD 1. OSD Keypad below the Front Panel
2. Remote Control for OSD Function
Power Requirement 100VAC~240VAC, 50/60Hz
Power Consumption 153W (IntelR T7500, 2GB memory, 80G HDD)
HSDPA Mobile Solution (Optional) 1 x HSDPA Mobile Module (USB Interface)

Ordering Information

Part No. Description
AFL-26A-9652-CM550/WT-S/1GB-R10 26" 350cd/m² WUXGA panel PC with Celeron® M 550 2.0GHz CPU,1GB DDR2 RAM,802.11 b/g/n wireless module,SAW touch screen,Bluetooth,RoHS
AFL-26A-9652-T7500/WT-S/2GB-R10 26" 350cd/m² WUXGA panel PC with Core™2 Dou T7500 2.2GHz CPU,2GB DDR2 RAM,802.11 b/g/n wireless module,SAW touch screen,Bluetooth,RoHS
AFL-26A-9652-CM550/W/1GB-R10 26" 350cd/m² WUXGA panel PC with Celeron® M 550 2.0GHz CPU,1GB DDR2 RAM,802.11 b/g/n wireless,Bluetooth,RoHS
AFL-26A-9652-T7500/W/2GB-R10 26" 350cd/m² WUXGA panel PC with Core™2 Dou T7500 2.2GHz CPU,2GB DDR2 RAM,802.11 b/g/n wireless module, Bluetooth,RoHS

Packing List

1 * Power Cord 1 * Remote Controller with Battery
1 * User's Manual
