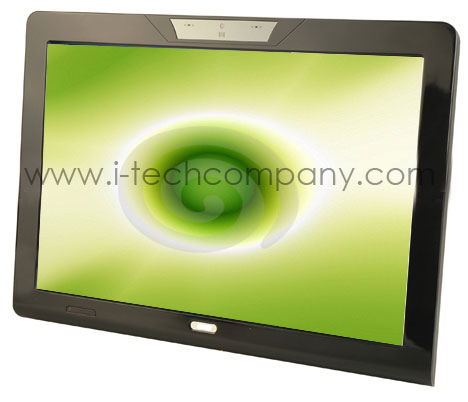

Wide Screen 19" 1440 x 900 Touch Panel PC with Intel® AtomTM N270 1.6GHz CPU (Model: AFL-W19A-N270)

Wide Screen 19" 1440 x 900 Touch Panel PC with Intel® AtomTM N270 1.6GHz CPU (Model: AFL-W19A-N270)

Wide Screen 19" 1440 x 900 Touch Panel PC with Intel® AtomTM N270 1.6GHz CPU (Model: AFL-W19A-N270)

AFL-W19A-N270
  • Overview
  • Download
Features
  • 19" wide screen all-in-one system with resistive touch panel
• High quality wide screen panel featuring 16:10 aspect ratio, high contrast and fast response time
• Fan-less system integrated with Intel® Atom N270 1.6G processor for ultra low voltage
• CD/DVD-ROM drive bay (For B Type Model)
• Built-in two speakers
• Built-in Bluetooth technology
• Built-in HSDPA module for mobile connection (Optional)
• Ambient Light Sensor detects ambient light for automated screen adjustments
• VESA-mountable for flexibility in mounting and deployment
• Support for Windows CE, Windows XP Embedded and LINUX (Optional)
• IP 64 Front Panel Compliant

Specifications

LCD Size 19"
Max Resolution 1440 x 900
Brightness (cd/㎡) 300
Contrast Ratio 850:1
LCD Color 16.2M
Pixel Pitch (mm) 0.285(H) x 0.285(V)
Viewing Angle (H-V) 160/160
Backlight MTBF 50000 hrs
SBC Model AFLMB2-945GSE-N270-R10
CPU Intel® Atom™ process N270 1.6GHz CPU
Chipset IntelR 945GSE + ICH7M
RAM Supports one 400MHz or 533MHz DDRII SO-DIMM (2GB Max.)
I/O Ports and Switches 1 x RS232 COM Port
1 x RS-232/422/485 COM port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port
1 x VGA Port
1 x Power Jack
SSD CF TypeII
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5W + 1.5W (internal speaker)
Expansion 1 x Wireless Lan 802.11 b/g Module (internal PCIe mini card interface)
1 x Bluetooth Function (internal USB interface, Bluetooth V2.0)
Construction Front Panel ABS + PC Plastic front frame
HDD Drive Bay 1 x 2.5" SATA HDD bay
LED Function 1 x Power ON/OFF LED on Front Panel
Mounting Panel, Wall, Stand and Arm VESA 100mm x 100mm
Front Panel Color Black C
Dimension (WxHxD) (mm) 475 x 259 x 65
Operation Temperature 0℃ ~40℃ With HDD
0℃ ~45℃ With CF Card or SATA interface 2.5" SSD HDD
Storage Temperature (℃) -20℃ ~60℃
Net Weight 5.8 Kg
IP Level(front panel) Frant Frame IP64
Safety & EMI CE / FCC / CB / CCC
Touch Screen Resistive Type 5-Wire (Touch controller IC is on board)
Power Adapter P/N:63000-FSP0841ADC11119-RS 84W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Membrane Keypad LCD On/Off, Brightness Up/Down, Volume Up/Down
Ambient Light Sensor YES
Power Requirement 12VDC
Camera 300K pixel camera (with low light function) and Digital Microphone
HSDPA Mobile Solution (Optional) 1 x HSDPA Mobile Module (USB Interface) (Optional)

Ordering Information

Part No. Description
AFL-W19A-N270/WT-R/1GB/**(HU01)-R10 19" 300cd/m² 1440x900 panel PC with Intel® Atom™ N270 1.6GHz CPU,1GB DDR2 RAM,802.11 b/g wireless module,touch screen,Bluetooth,300K camera,microphone,RoHS

Packing List

4 * Screws Pack (P/N:44013-030041-RS) 1 * Power Adpater (P/N:63000-FSP0841ADC11119-RS, 90~264V AC; 12V DC; 84W (W19A/B-ATOM))
1 * Power Cord (1750mm) (P/N:32000-000002-RS) 1 * Utilities CD
1 * Touch Pen (P/N:XTR104-0002-RS)
