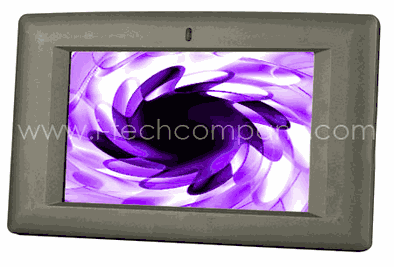

7" Widescreen WVGA Touch Panel PC AMD Geode LX- 800 500 MHz Processor (Model: AFL-07A-LX)

7" Widescreen WVGA Touch Panel PC AMD Geode LX- 800 500 MHz Processor (Model: AFL-07A-LX)

7" Widescreen WVGA Touch Panel PC AMD Geode LX- 800 500 MHz Processor (Model: AFL-07A-LX)

AFL-07A-LX
  • Overview
  • Download
Features
  • 7" widescreen WVGA TFT LCD with resistive touch screen
• Compact design with plastic housing
• Fanless cooling system
• System memory up to 1 GB SDRAM
• Built-in 802.11b/g Wireless LAN
• Built-in Bluetooth module
• Built-in two 1.5 W speakers
• One compact flash slot
• IP 64 compliant front panel

Specifications

LCD Size 7"
Max Resolution 800*480
Brightness (cd/㎡) 350
Contrast Ratio 400:1
LCD Color 262K
Pixel Pitch (mm) 0.1905(H) x 0.1905(V)
Viewing Angle (H-V) 140/100
Backlight MTBF 50000 hrs
SBC Model AFLMB-LX800
CPU AMD Geode LX 800 (500MHz)
Chipset AMD Geode LX 800+ AMD Geode CS5536
RAM Maximum Memory suppotted 1GB(SODIMM x 1 )
Support for DDR333 / 400Mhz DDR SODIMM
I/O Ports and Switches 1 x RS-232 COM port
1 x RS-232/422/458 COM port
2 x RJ-45 for 10/100Mbpa LAN
2 x USB 2.0
1 x power Switch
1 x Reset Button
SSD CF Type II
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5W + 1.5W
Expansion 1 x Mini PCI (Wireless Lan 802.11b/g Module)
AMP 1.5W + 1.5W
HDD Drive Bay N/A
Construction Material ABS Plastic & Aluminum
LED Function 1 x Power ON/OFF LED on front panel
Mounting Panel, Wall, Rack, Stand or Arm VESA 75mm x 75mm
Front Panel Color Gray 7539U
Dimension (WxHxD) (mm) 226 x 140 x 41
Operation Temperature 0~50℃
Storage Temperature (℃) -20℃~60℃
EMC CE,FCC,CCC
Shock 10G acceleration peak to peak(11ms)
Net Weight 0.6 Kg
IP Level(front panel) IP64
Safety UL,CB
Touch Screen Resistive Type 4-Wire (touch controller IC is on borard)
Power Adapter P/N: 63000-FSP0361AD101C-RS
Power: 36W
Input: 90VAC~264VAC @ 50/60Hz
Output:12VDC
Power Requirement 2VDC or 18~30VDC
Power Consumption 20W

Ordering Information

Part No. Description
AFL-07A-LX/WT-R/256MB-R12 7", 350cd/m² WVGA fanless panel PC with AMD Geode™ LX 800 CPU, 256MB DDR RAM, 802.11b/g wireless module, Bluetooth module and touch screen, RoHS
AFL-07A-LX/WT-R/512MB-R12 7", 350cd/m² WVGA fanless panel PC with AMD Geode™ LX 800 CPU, 512MB DDR RAM, 802.11b/g wireless module, Bluetooth module and touch screen, RoHS
AFL-07A-CX2-E10G/WT-R/512MB 7" 350cd/m² WVGA fanless panel PC with VIA Eden 1GHz ULV CPU, 512 MB DDR2 RAM, 802.11 b/g wireless module, touch screen,bluetooth, RoHS
AFL-07A-LX24V/WT-R/256MB-R11 7" 350cd/m² WVGA fanless panel PC with AMD Geode™ LX 800 CPU, 256 MB DDR RAM, 18~30VDC Power Input, 802.11 b/g wireless module, touch screen, bluetooth, RoHS
AFL-07A-LX24V/WT-R/512MB-R11 7" 350cd/m² WVGA fanless panel PC with AMD Geode™ LX 800 CPU, 512 MB DDR RAM, 18~30VDC Power Input, 802.11 b/g wireless module, touch screen, bluetooth, RoHS

Packing List

4 * Screws ,M3;ø5mm (P/N:44013-030041-RS) 1 * Power Adapter ,90~264V;12V;36W (P/N:63000-FSP0361AD101C-RS)
1 * Power Cable ,1750MM,European (P/N:32000-000002-RS ) 1 * User's Manual CD ROM (P/N:7B000-000087-RS)
1 * Touch Pen (P/N:XTR104-0002-RS)
