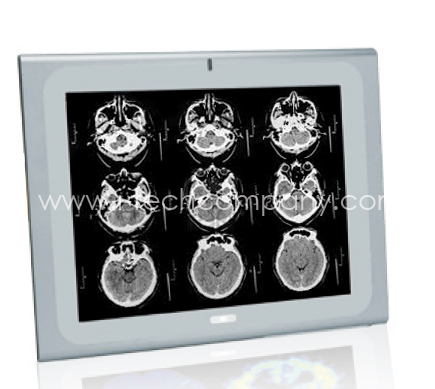

19" Medical Panel PC,LED Backlight,i5-520M 2.4GHz,2GB DDR3,320G HDD,wireless 3T3R 802.11 a/b/g/n,Touch Screen,Power adaptor (Model: iMC1900i5)

19" Medical Panel PC,LED Backlight,i5-520M 2.4GHz,2GB DDR3,320G HDD,wireless 3T3R 802.11 a/b/g/n,Touch Screen,Power adaptor (Model: iMC1900i5)

19" Medical Panel PC,LED Backlight,i5-520M 2.4GHz,2GB DDR3,320G HDD,wireless 3T3R 802.11 a/b/g/n,Touch Screen,Power adaptor (Model: iMC1900i5)

iMC1900i5
  • Overview
  • Download

Features

• 17"~19" multi-functional panel PC with touchscreen
• Powered by high performance Intel® mobile Core™ i7/ i5/ i3 and Celeron® processor with Intel® HM55 chipset
• System memory supports DDR3 SDRAM SO-DIMM up to 8 GB
• HDMI interface provides second display with vivid image quality
• 802.11 a/b/g/n high speed wireless
• Dual gigabit Ethernet


The Best Performance Grade with Intel® Mobile Core™ i7/ i5/ i3





OSD Utility

iTechLCD patented system software utility allows users to adjust system settings through the software interface in Windows environment instead of pressing the membrane keypad below the front panel.




802.11 a/b/g/n ready with invisible antenna

The iMC1700/1900 series series systems have two Gigabit Ethernet LAN connectors and wireless 802.11 a/b/g/n network connections, enabling better link quality through accurate network selection. The powerful 802.11 a/b/g/n wireless connection increases redundancy and ensures reliable network for real-time medical record processing.

  802.11a 802.11b 802.11g 802.11n
Data Rate (Mbps) 54 11 54 540
Range
(Radius Indoor)
35 Meters 38 Meters 38 Meters 250 Meters
Range
(Radius Outdoor)
120 Meters 140 Meters 140 Meters 250 Meters
Radio Frequency 5.15 GHz to 5.85GHz 2.4 GHz to 2.5GHz 2.4 GHz to 2.5GHz 2.4 GHz to 5.0GHz




Specifications


Model iMC1700 iMC1900
LCD Touch Specification LCD size (inch) 17" 19"
Max Resolution 1280 (W) x 1024 (H)
Brightness (cd/m²) 380 350
Contrast Ratio 800:1 1000:1
LCD Color 16.7M
Viewing Angle (H-V) 170/160
Touch Screen Resistive Type 5-Wire
System CPU Socket G (PGA989A) Intel® Arrandale processor Core™ i7-620M 2.66G / Core™ i5-520M 2.4G / Core™ i3-350M 2.26G / Celeron® P4500 1.86G
Chipset Intel® HM55
Memory Two 204-pin 800/ 1066 MHz DDR3 dual-channel SO-DIMM (system max. 8GB)
I/O Ports
1 x RS-232 by DB-9 1 x RS-232 or RS-422/485 by DB-9
2 x GbE LAN by RJ-45 4 x USB connector
1 x HDMI Port 1 x Audio jack (line out)
1 x VGA port by DB-15 1 x Reset button
1 x Power switch 1 x Power jack
Drive Bay 1 x 2.5" SATA HDD bay for SATA storage devices
Audio AMP 3W + 3W (internal speaker)
Membrane Keypad LCD on/off, Brightness up/down, Volume up/down
LED Function 1 x Power on/off LED on front panel
Wireless Wi-Fi 1 x Wi-Fi module 802.11 a/b/g/n (internal PCIe Mini card interface)
Physical Construction Material anti-bacteria Plastic front frame
Mounting Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm Panel, Wall, Stand and Arm VESA 100mm x 100mm
Net Weight 6.0 kg 6.2 kg
Dimensions (WxHxD) (mm) 428 x 350 x 76 470 x 383 x 79
Environment Operation Temperature (°C) 0°C~50°C
Storage Temperature (°C) -20°C~60°C
IP Level Front Frame IP64
Power Power Requirement 12V DC
