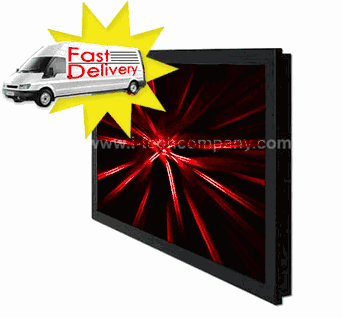

47" Wide Format WUXGA TFT LCD. Aspect Ratio 16x9. 8m/s response time. 500cd/m2 (typical brightness). Up to 1920x1080 with IR Touch Screen (Optional: Extended Warranty) (Model: DCH4700-TS)

47" Wide Format WUXGA TFT LCD. Aspect Ratio 16x9. 8m/s response time. 500cd/m2 (typical brightness). Up to 1920x1080 with IR Touch Screen (Optional: Extended Warranty) (Model: DCH4700-TS)
  • Front View
  • Front View
  • Back View
  • Back View with stand
  • Side View

47" Wide Format WUXGA TFT LCD. Aspect Ratio 16x9. 8m/s response time. 500cd/m2 (typical brightness). Up to 1920x1080 with IR Touch Screen (Optional: Extended Warranty) (Model: DCH4700-TS)

DCH4700-TS
  • Overview
  • Specifications
  • Download
Product Discontinued. Contact us at Info@iTechLCD.com for Replace items.

DCH4700 (47” Signage LCD )

The DCH4700 Signage LCD equips vivid, Full-HD displays in one slim, mountable package; most suitable to integrate with iTechLCD Signage Appliances.
The signage appliance nests into the back of the display to create one slim, easily mountable digital signage system, while still being accessible.
With options for touch screen, applications are limitless for interactive signage and kiosk deployments.

Features:

  • 1920 x 1080 Full-HD resolution
  • High performance, high contrast LCD panel with wide viewing angle
  • Low power consumption and long life
  • Slim design for limited space
  • Touch Screen option for interactivity

Accessories

Tabletop stands

Tabletop Stand for DCH2600 (PN: TableS829)

Stable, aluminum stand attaches to base of 26” Signage LCD Displays for placement on a flat surface. Rubber-padded bottom for secure grip. 2 pieces.

Tabletop Stand for DCH3700/4200/4700 (PN: TableS825)

Stable, aluminum stand attaches to base of 37”, 42”, 47” Signage LCD Displays for placement on a flat surface. Rubber-padded bottom for secure grip. 2 pieces: 9.8”long and 3” wide each.

Mounting Kit

Mobile cart stand with adjustable height for horizontal or portrait mounting of 26”, 37”, 42”, 47” Signage LCD Displays. Steel construction with four wheels on base. Cart tallest height: 45.7”, front base width: 28.2” , rear base width: 20.5”, base length: 28.9”
  • Series: DCH4700 (Non-touch) | DCH4700-TS (Touch)
  • Case/bezel color: Black
  • Display Resolution: 1920 x 1080 resolution
  • Enclosure: Slim design with durable metal enclosure, VESA compatible
  • Monitor dimensions (without base):
    - Width : 1132.1mm (Non-touch) | 1154.1mm (Touch)
    - Height : 676.7mm (Non-touch) | 682.7mm (Touch)
    - Depth : 92mm (Non-touch) | 111.3mm (Touch)
  • Useful screen area:
    - Horizontal : 1044.2 mm
    - Vertical : 588.9 mm
  • Control Buttons: One power button on media player, 3 OSD Controls buttons
  • AC/DC adapter: Input: 100 – 240VAC, Output: 12VDC
  • Power Cords: North America, EU , UK , China , Japan
  • Regulatory: FCC Class B, CE, C-Tick, RoHS Compliant
  • Temperature:
    - Storage: -20°C to 60°C
    - Operating: 0°C to 40°C
  • Active Size : 47.0 inch diagonal
    - Type : Wide format WXGA TFT LCD
    - Aspect ratio: 16 x 9
  • Surface Treatment: Hard Coating(3H) Anti-glare treatment of front polarizer
  • Colors: 16.7 million
  • Brightness: LCD panel: 500 cd/m2 (typical)
  • Response time: 8 msec (typical)
  • Pixel pitch: 0.5415mm x 0.5415mm
  • Resolution Supported: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768 , 1920 x 1080 (portrait mode)
  • Pixel Format: 1920 (H) x 1080 (V) pixels, RGB stripe arrangement
  • Power supply: Type: Built in, 90–240 VAC, 50/60 Hz
  • Humidity: Ta = 40C , 90% RH
  • Warranty: 1 year (can be extended up to 2 years)
  • On-screen display (OSD): Multilingual OSD
*note* Specifications subject to change without notice


Signage LCD – IR Touch Option

  • Fit In With :
    DCH4700 Series LCD Panel
  • Transparency :
    > 92%, Up to 100%
  • Minimum Touch object :
    >5mm
  • Response Speed :
    <16ms
  • Touch Intensity :
    Over 60,000,000 Single Point Touch
  • Vandal-Proof :
    Steel Ball (Diameter 38mm 227g Weight) drop from 200cm, No breakage
  • Temperature :
    Please check the spec for 47"
  • Direct Light :
    No Disturbing
  • Drift :
    Maintenance free


Part Number
Compatible with
LCD
DCH4700-TS
DIR Touch
