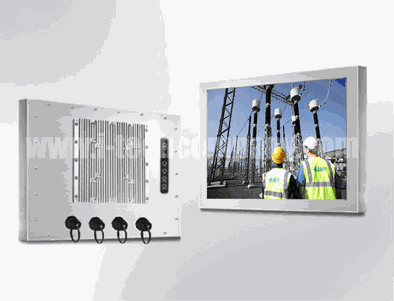

Rugged Completely Sealed Full IP66 Stainless Steel Chassis 15" LCD monitor , Resolution 1024 x 768, 1000 nits, Intel Core i5-3610ME Processor with 5 Wire Resistive Touch Screen and USB Controller (Model: ECH1500HB-SIP-i5-TR)

Rugged Completely Sealed Full IP66 Stainless Steel Chassis 15" LCD monitor , Resolution 1024 x 768, 1000 nits, Intel Core i5-3610ME Processor with 5 Wire Resistive Touch Screen and USB Controller (Model: ECH1500HB-SIP-i5-TR)

Rugged Completely Sealed Full IP66 Stainless Steel Chassis 15" LCD monitor , Resolution 1024 x 768, 1000 nits, Intel Core i5-3610ME Processor with 5 Wire Resistive Touch Screen and USB Controller (Model: ECH1500HB-SIP-i5-TR)

ECH1500HB-SIP-i5-TR
  • Overview
  • Download

Features

  • Modularize mechanical design provides flexible product confguration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Intel® Core i5 Processors
  • Intel® H61
  • 2 x DDR3 1333/1600MHz SO-DIMM Slot (up to 16GB)
  • 1 x COM, 1 x VGA, 2 x USB, 1 x LAN, 1 x Power
  • IP66 Complient


Specifications


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size 4 : 3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm

Native Resolution / Colors

1024(H) x 768(V) / 16.2 M
Brightness / Contrast 1500 cd/m2 (typ) / 700 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140o (- 70o ~ + 70o) , V. 120o(- 60o ~ + 60o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
System CPU Intel® Core i3 / i5 / i7 Processors
BIOS UEFI
System / Graphic Chipset Intel® HD Graphics (By CPU); Shared Memory
System Memory 2 x DDR3 1333/1600MHz SO-DIMM Slot (up to 16GB)
HDD 4 x SATA2
I/O port 1 x VGA
2 x USB
1 x COM
1 x LAN
Expension N / A
Power Power Input 9-19V DC-In (4-pin ATX PWR Con)
Power Consumption 65 Watt, <1 Watt
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
