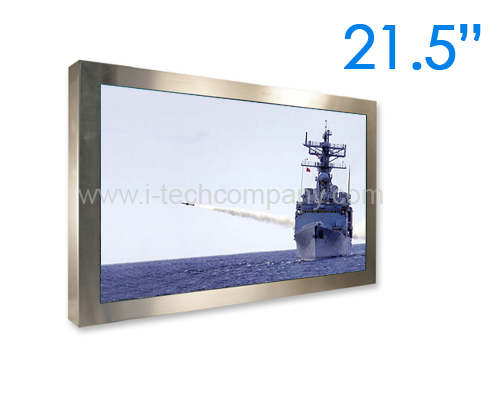

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Water/Dust proof 21.5" LCD monitor LED backlight, 1920 x 1080, 1000 nits, with 2mm AR glass, VGA and DVI input with 5 Wire Resistive Touch Screen and USB Controller (Model: SCHW2150HB-SIP-TR)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Water/Dust proof 21.5" LCD monitor LED backlight, 1920 x 1080, 1000 nits, with 2mm AR glass, VGA and DVI input with 5 Wire Resistive Touch Screen and USB Controller   (Model: SCHW2150HB-SIP-TR)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Water/Dust proof 21.5" LCD monitor LED backlight, 1920 x 1080, 1000 nits, with 2mm AR glass, VGA and DVI input with 5 Wire Resistive Touch Screen and USB Controller (Model: SCHW2150HB-SIP-TR)

SCHW2150HB-SIP-TR
  • Overview
  • Download

Features:

• 21.5" Bright Active Matrix TFT Display, 1000 Nits (cd/m²)
• 1920 x 1080 High Resolution
• NEMA 4X (IP66) 304 Stainless Steel Gasket Sealed Enclosure
• Input Interface VGA + DVI-D
• Included all water proof connectors and 6ft long water proof cables.
• LED backlight Energy Efficient, Low Power Consumption
• High Environmental Performance and Reliability
• Anti-Reflective Protective Glass
• Wide Operational Temperature Range, 0°C to +50°C (32°F to +122°F)
• RoHS Compliant
• VESA mount compliant.



Options:

• Optional custom fitting for integrated computer Atom D2550 1.86Hz, 32GB Wide temp SSD and 4GB Memory (DVI x 1 + RS232 x 1 + USB x 2 + POWER x 1 + LAN x 1
• Optional Custom fitting for purging the monitor's enclosure
• Optional for 9-36V DC input
• Optional 5 Wired Resistive touch/ IR/ PCap Touch Screen (USB Default/ RS232 per request controller)
• Optional High Brightness 1000nits For Semi outdoor application
• Optional for Auto Dimming Sensor
• Optional for IR Remote Control with Front Sensor.
• Optional Heater for lower temperatures -30C (-22F)
• Optional Integrated VGA/ DVI Extender
-Transmission length up to 1,000ft over CAT5e cable for VGA input
- Transmission length up to 300ft over CAT5e cable for DVI input



Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount LCD Monitor


Features Highlights:





  • Optional DC 9-36V input



Specifications:

LCD Display
Size / Panel Type 21.5” TFT LCD Panel
Resolution 1920 x 1080
Brightness (cd/m²) 1000 cd/m²
Contrast Ratio 1000 : 1
Response Time 5 ms
Backlight LED Backlight Unit
Colors 16.7M colors
Viewing Angles 170°/160°
Surface Hardness 7~8H, AR Glass
Touch Screen (Optional)
Touch Screen Type Resistive Touch (Optional)
Surface Hardness 3H / 7H
Environment
Operating Temperature 0°C~+50ºC
Storage Temperature -20°C~+60°C
Humidity 5%~95% RH(Non-Condensing)
Water-Proof Rating IP66/NEMA4, 6 Side Water-Proof
System
OSD Menu, Auto, On/Off, Up, Down
I/O Interface DVI x 1, VGA x 1, Power x 1
Power Input 12 VDC ( Optional : 9~36VDC)
Power Consumption 38W
Certification FCC/CE/RoHS Compliance
Mounting VESA 100 x 100mm; 200 x 100mm
Dimension/Weight 548.5mm (W) x 340mm (H) x 55mm (D) / 9kgs



Accessories

Water proof VGA cables 6ft long x 1
Water proof DVI cables 6ft long x 1
External Power Adapter x 1
