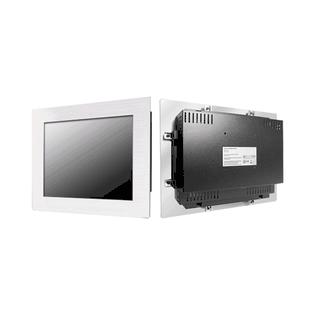

Panel PC IP65 front Stainless Panel Mount, 17" LCD monitor, 1280 x 1024, LED 1000 nits, Intel Core i5, Intel H110, 2 x DDR4 SO-DIMM, 1 x HDMI, 1 x Display Port, 4 x USB 3.0, 1 x LAN (Model: EMCS1700HB-i5A)

Panel PC IP65 front Stainless Panel Mount, 17" LCD monitor, 1280 x 1024, LED 1000 nits, Intel Core i5, Intel H110, 2 x DDR4 SO-DIMM, 1 x HDMI, 1 x Display Port, 4 x USB 3.0, 1 x LAN (Model: EMCS1700HB-i5A)

Panel PC IP65 front Stainless Panel Mount, 17" LCD monitor, 1280 x 1024, LED 1000 nits, Intel Core i5, Intel H110, 2 x DDR4 SO-DIMM, 1 x HDMI, 1 x Display Port, 4 x USB 3.0, 1 x LAN (Model: EMCS1700HB-i5A)

EMCS1700HB-i5A
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 17" viewable diagonal area
Active Area / Pixel Pitch 337.92(H) x 270.34(V) mm / 0.264(H) x 0.264(V) mm

Native Resolution / Colors

1280(H) x 1024(V) / 16.7 M
Brightness / Contrast 1000 cd/m2 (typ) / 800 : 1
Response Time < 5 ms
Viewing Angle (typical) H. 170° (- 85° ~ + 85°) , V. 160° (- 80° ~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
System CPU Support for Intel® Core i5 (Skylake-S)
BIOS UEFI
System / Graphic Chipset Intel® H110
System Memory 2 x DDR4 SO-DIMM slots, up to 32GB 2133MHz
HDD 4 x SATA2
I/O port 1 x HDMI
4 x USB 3.0
1 x Display Port
1 x LAN, Mic-in, Line-out
Expansion 1 x Mini PCI-e
Power Power Input 12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con)
Power Consumption 78 Watt, <1 Watt
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
Infrared touch SV + AV + TV Wide Temperature Motion Sensor
Protected glass   Sunlight Readable Light Sensor
      Auto-Dimming
