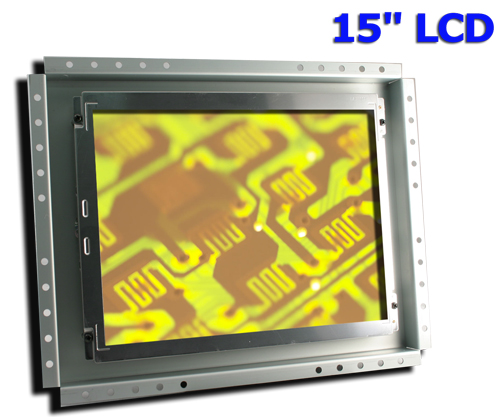

15" Open Frame LCD Monitor w/ VGA, AV (Model iOP1500AV)

15" Open Frame LCD Monitor w/ VGA, S-Video & Composite Inputs (Model iOP1500AV)
  • Front View
  • Front View Close Up
  • OSD
  • Video Input
  • Back View
  • Back View
  • Accessories

15" Open Frame LCD Monitor w/ VGA, S-Video & Composite Inputs (Model iOP1500AV)

Inquiry/Quote Request
iOP1500AV
  • Overview
  • Download

Product discontinues. Contact us at Info@iTechLCD.com to find out more information.

LCD Type Samsung grade A industrial TFT LCD Panel
Display Size 15.0 inch diagonal (304.1H x 228.1V)
Resolution 1024 x 768, XGA
Display Color 16.2M color
Brightness 450 cd/m2
Contrast Ratio 300 : 1 (Typical)
Pixel Pitch 0.297 x 0.297 mm
Viewing Angle 70 / 70 / 60 / 65 (L / R / U / D)
OSD Control , Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall
VGA Connector  D-Sub 15 pin VGA analog
Video Input  S-Video and Composite
LCD MTBF  50,000 hrs
Mounting Flexible front mount
Dimension 400.4(W) x 310.2(H) x 53.3(D) mm
Weight  2.5 kg (Net) / 4.5 kg (Gross)
Packing 555(L) x 470(W) x 90(H) mm
