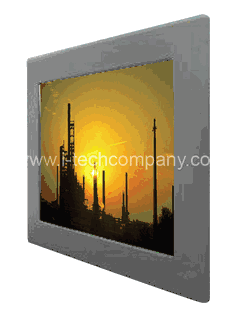

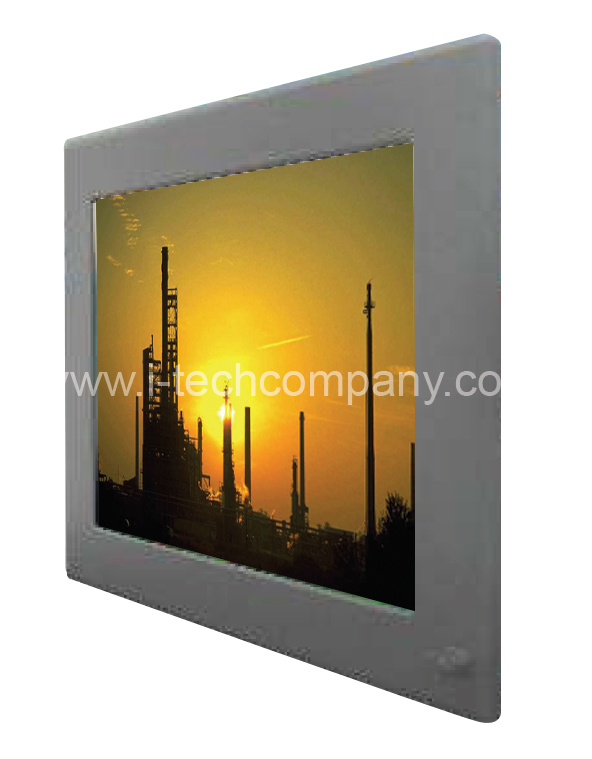

19" Panel Mount Widescreen LCD Monitor VGA, Optional AV inputs, Touch Screen LCD display (Model: WPMW1900M3)
19" Panel Mount Widescreen LCD Monitor VGA, Optional AV inputs, Touch Screen LCD display (Model: WPMW1900M3)
X
Inquiry/Quote Request
- Overview
- Download
Specifications
| Technical Description | |
| Model Name | WPMW1900M3 |
| Screen Size (diagonal) | 19"(16:10) |
| Active Display Area (mm) | 408.2 (H) x 255.2 (V) |
| Pixel Pitch (mm) | 0.284 (H) x 0.284 (V) |
| Native Display Resolution (pixels) | 1440x900 |
| Brightness (CD/m^2) | 250 (typ.) |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angles (L/R/U/D) | -85~85 (H); -80~80 (V) |
| Number of Colors | 16.7M (8bits/color) |
| Optional Touch Screen | Resistive |
| Power Information | |
| Power Source | 12V DC, with External AC-DC Adapter (100~240V) |
| Power Consumption(Normal operation) | 15W typical, normal operation |
| Power Input | VESA DPMS Compliant |
| Display Signals | |
| Plug & Play | VESA DDC 1/2B |
| Video Input (optional) | S-Video,Composite |
| DVI Input (optional) | Yes |
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
