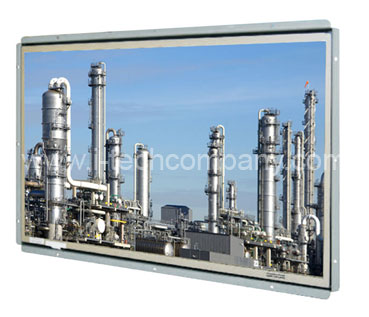

18.5" Wide Open Frame LCD Monitor w/ VGA input (Model: WOPW1850A2)

18.5" Wide Open Frame LCD Monitor w/ VGA input (Model: WOPW1850A2)

18.5" Wide Open Frame LCD Monitor w/ VGA input (Model: WOPW1850A2)

WOPW1850A2
  • Overview
  • Download


Specifications

Technical Description
Screen Size (diagonal) 18.5"
Active Display Area (mm) 409.8 (H) x 230.4 (V)
Pixel Pitch (mm) 0.3 (H) x 0.3 (V)
Native Display Resolution (pixels) 1366x768
Brightness (CD/m^2) 250(typ.)
Contrast Ratio 1000:1
Viewing Angles (L/R/U/D) -85~85(H);-80~80(V)
Number of Colors 16.7M
Optional Touch Screen Resistive
Power Information
Power Source 12V DC in, with External AC to DC Adapter (100~240V AC)
Power Consumption(Normal operation) 19W typical, normal operation
Power Input VESA DPMS Compliant
Display Signals
Plug & Play VESA DDC 1/2B
Video Input (optional) S-Video,Composite
DVI Input (optional) Yes

Remark: WOPW1850A2 = VGA input only
WOPW1850A2AV = VGA + Video input
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
