YPM1900PHB2-E

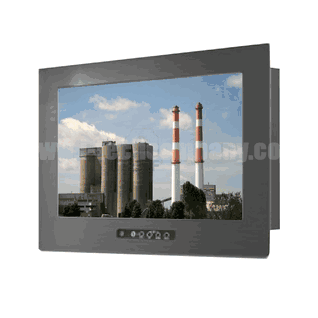

19" IP65 Front side, Panel-Mount LCD display, Clamp Mount + Gasket behind front bezel,1280x1024, LED-1500nits (Model: YPM1900PHB2-E)

19" IP65 Front side, Panel-Mount LCD display, Clamp Mount + Gasket behind front bezel,1280x1024, LED-1500nits (Model: YPM1900PHB2-E)

YPM1900PHB2-E
  • Overview
  • Download

Features:

• Modularize mechanical design provides flexible product configuration and easy maintenance
• Optional build-in touch screen for interactive application
• Available with auto-brightness sensor offers application in day and night
• VGA connector with optional AV,SV,AV-Looping
• Complete custom design/solution for OEM customers.



System Specs:

Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low re lection coating
Aspect Ratio / Size 4 : 3 / 19" viewable diagonal area
Active Area / Pixel Pitch 376.3(H) x 301.1(V) mm / 0.294(H) x 0.294(V) mm
Native Resolution / Colors 1280(H) x 1024(V) / 16.7 M
Brightness / Contrast 1500 cd/m2 (typ) / 800 : 1
Response Time ≤ 5 ms
Viewing Angle (typical) H. 170o (- 85o ~ + 85o) , V. 160o(- 80o ~ + 80o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features   Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 33 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 6 Kgs / 7 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)


Clamp Mount



Order Information

Touch Screen (Optional)
N: No touch screen or glass.
G: Glass (AR Coating).
R: 5-Wires Resistive, RS232.
U: 5-Wires Resistive, USB
Signal Input
C: VGA only.
D: VGA + DVI-D.
E: VGA + DVI-D + Audio.
Color
B: Black
S: Sliver
Other
N: N/A
P: Panel mount kits.

Installation Guide for Panel Mount Product:

You better have at least 2 people to do the installation. One is at the front side of the mounting wall, another is at the back side of the mounting wall.


1. Get the Mechanical Drawing :
You can get the mechanical drawing of your product model from our web site : www.itechlcd.com . If you can’t find the correct mechanical drawing, contact your local dealer.

2. Make the cut out :

There is the cut out dimension in the Mechanical Drawing. Make sure your cut out meet the cut out dimension requirement. If the cut out is too small, there will be some interference. If the cut out is too big, you can’t have the panel
mounting securely. Please note that there is thickness limitation of the mounting wall for panel mount installation.

3. Prepare the accessory :

For panel mounting kit installation, you will receive mounting kits and screws together with your unit and you have to prepare the screw driver by yourself. There are at least 2 mounting kits for each side of the panel. The mounting kit and the screw is paired.

4. Installation :
4-1. Put the monitor in the cut out from the front side of the mounting wall. The best way to mount the panel is to align the bottom of the panel housing with the bottom edge of the cut out. This way can help hold the panel steadily.


4-2. At the back side of the mounting wall, insert the mounting kits into the slide hole at the side bracket on the panel.
4-3. Put the screw on the mounting kits and screw it tightly.
4-4. Finish all the mounting kits one by one then you can have a secure installation for your Panel Mount product.
