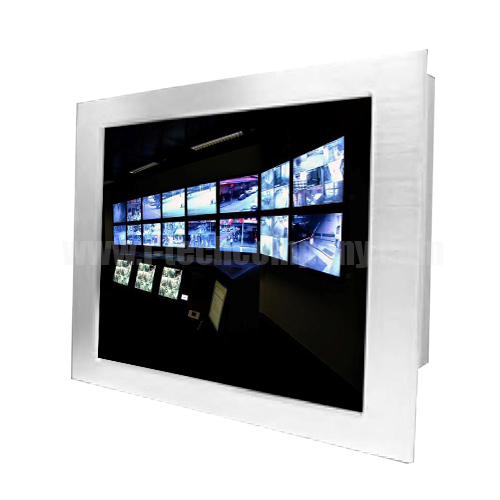

IP65/NEMA 4X Front Fanless 12.1" industrial panel PC, Intel Bay Trail J1900 Mini ITX main board, 1024x768dpi with 5 wires resistive touch screen (Model: KPC1210X-J)

IP65/NEMA 4X Front Fanless 12.1" industrial panel PC with 5 wires resistive touch screen (Intel Bay Trail J1900 Mini ITX main board with 1 x LAN , DC in 12V only + standard panel PC with aluminum front bezel ( silver or black) + DC in external power + panel mount & VESA mounting 100 x 100 mm + resolution : 1024 x 768 dpi) (Model: KPC1210X-J)

IP65/NEMA 4X Front Fanless 12.1" industrial panel PC with 5 wires resistive touch screen (Intel Bay Trail J1900 Mini ITX main board with 1 x LAN , DC in 12V only + standard panel PC with aluminum front bezel ( silver or black) + DC in external power + panel mount & VESA mounting 100 x 100 mm + resolution : 1024 x 768 dpi) (Model: KPC1210X-J)

KPC1210X-J
  • Overview
  • Download

Features:

  • A wide range of CPU solutions from entry to professional level
  • IP65 compliant aluminum front bezel
  • 5-wire resistive touch screen
  • A variety of I/O ports and expansion slots for more applications


PC-based automation systems have been widely used in many industries to help manufacturers realize electronic standard operating procedures to minimize cost / engineering effort and to enhance productivity. Some considerations should be taken into account when deploying an automation system, such as computing performance, power efficiency, budget, scalability, compatibility to the existing system and something alike.

With the following features, iTechLCD's KPC Series is a standard touch panel PC which can satisfy general applications such as automation, monitoring, control & data processing in various fields.
  • A wide range of selectable CPU solution from entry to professional level to meet any computing performance requirement and budgetary target
  • A wide array of panel size selection from 8.4” to 21.5” with both 3:4 and 16:9 aspect ratios for larger sizes for easy deployment on your systems
  • A variety of I/O ports and expansion slots for more possibility of advanced applications
  • IP65 compliant aluminum / stainless steel front bezel and the optional waterproof gasket design to provide basic waterproof protection against water spray from the front side





Specifications

PC Specifications
CPU Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor (CPU OnBoard)
Memory 2 x 204-pin SODIMM Dual-channel DDR3L 1333 / 1066MHz up to 8 GB
Power Supply DC in 12V external power adaptor
I/O Ports (Default) 1 x RS232, 1 x GLAN, 4 x USB, 1 x VGA,
1 x Line-out, 1 x Mic-in, 1 x SATA socket
I/O Ports (Optional) Extra 2 x RS232, Extra 2 x USB
Expansion 1 x PCIe slot, 1 x Mini PCIe slot (w/ mSATA function)
Operation Temperature 0°C ~ 45°C
Storage Temperature -10°C ~ 70°C
Relative Humidity 10% ~ 90% non-condensing
OS Support Win 7 Pro, Embedded 7, Win 8 Pro, Embedded 8
Installation Clip mount, Panel mount & VESA mount 75 x 75 mm (12.1") / 100 x 100 mm (15" ~ 21.5")
Optional Items Waterproof gasket, External DVD-RW driver, RFID sensor, None touch screen, Open frame, Stainless front bezel, Mounting clips, Memory, Storage devices, WiFi, OS

LCD Specifications
Display Size / Aspect Ratio 12.1" TFT (4:3)
Backlight LED
Resolution 1024 x 768
Colors 16.2M
Luminance (cd/m2) 500
Contrast Ratio 700:1
Viewing Angle (H/V°) 160/160
MTBF (hrs) 50,000
Touch Screen 5-wire resistive
Dimension (W x H x D, mm) 349.4 x 263.9 x 70
Weight (kg) 6.5
OSD Controller No
