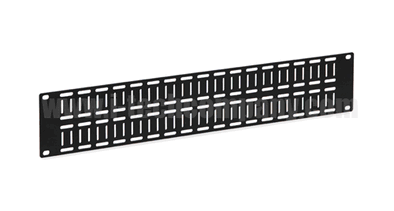

2U Flat Cable Lacing Panel - 10 pack (Model: 1903-1-012-02)

2U Flat Cable Lacing Panel - 10 pack (Model: 1903-1-012-02)

2U Flat Cable Lacing Panel - 10 pack (Model: 1903-1-012-02)

1903-1-012-02
  • Overview
  • Download

The Kendall Howard 2U Flat Cable Lacing Panel is a top choice for managing and routing cables to and from patch panels, switches or other networking devices. Designed with you in mind, this cable management panel was built to support and organize cables, providing easy access to connections without taking up much room in an already crowded area. Simply mount the panel above or below your networking device, secure cables to the numerous vertical and horizontal lacing slots with the help of the Hook and Loop Cable Ties, and see the difference the panel makes within your rack.

  • Quantity: 10
  • Supports and relieves strain at connection points
  • Vertical and horizontal lacing slots
  • 19" EIA 310-D compliant
  • Made in the USA
  • Limited Lifetime Warranty


Features

Numerous Lacing Slots Lacing slots nearly cover the entire length of the panel allowing convenient routing to either side of the rack.
No Mess Maintenance Cables will now be organized in such a fashion that little effort is needed to locate the right cable. Maintenance times will decrease as a result of this organization.
Strain Reliever Relieves cable weight from network equipment, and also helps to avoid connection ports from being damaged or disconnected.
Rounded Corners All corners are rounded to avoid snagging or damaging cables, hands, and/or other devices.
Universal Mounting This lacing panel features standard 19" EIA compliant mounting holes that are compatible with any standard rack hardware. (Hardware not included.)


Specifications

Part Number 1903-1-012-02
Width 19"
Depth 0.06"
Height 3.47"
Weight 10.50 lbs.
Shipping Dimensions 20" L x 6" W x 6" H
Material(s) CRS (Cold Rolled Steel)
Color/Finish Black Powder Coat Finish
UPC 879447004236
Warranty Limited Lifetime Warranty
Shipping Method FedEx Ground
