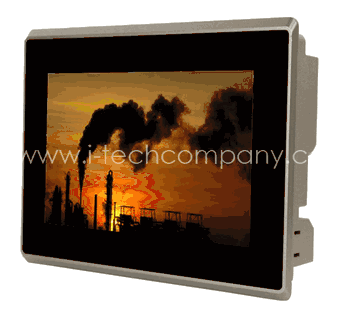

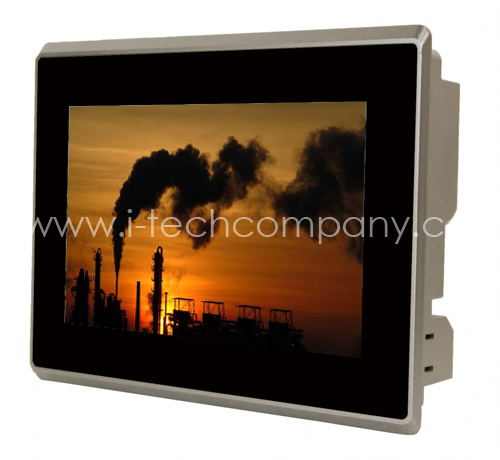

Fanless Panel PC 15" Atom N2600 1.6GHz NM10 2GB (Max2GB) 2.5" 320GB 2 GigaLAN 2 COM1 @ 422/485 60W Adapter XP Pro 400 cd/m2 External SD Slot (Model: BBC1500N)

Fanless Panel PC 15" Atom N2600 1.6GHz NM10 2GB (Max2GB) 2.5" 320GB 2 GigaLAN 2 COM1 @ 422/485 60W Adapter XP Pro 400 cd/m2 External SD Slot (Model: BBC1500N)

Fanless Panel PC 15" Atom N2600 1.6GHz NM10 2GB (Max2GB) 2.5" 320GB 2 GigaLAN 2 COM1 @ 422/485 60W Adapter XP Pro 400 cd/m2 External SD Slot (Model: BBC1500N)

BBC1500N
  • Overview
  • Download

Features

• 12" LCD Panel
• Flat Front Panel with IP65 Design
• Solid Aluminum Die-casting Chassis
• Intel Atom N2600 processor, Dual Core Low Power Fanless System


Specifications

System
Processor System

Intel Atom Cedar View N2600 1.6GHz Dual Core Processors

System Chipset Intel NM10
System Memory Onboard DDR3 2GB 800 MHz
I/O Port
USB 2 x USB 2.0 type A, USB4/5
Serial/Parallel • 1 x RS-232/422/485 DB-9, COM1, Default RS-232
• 1 x RS-232 DB-9, COM2
Audio 1 x Line out phone jack
LAN 2 x GbE RJ-45
Power 3 pins terminal block connector, DC Power input
Storage Space
HDD 1 x2.5" SATA 2
Movable Device 1 x Internal SD slot
Expansion
On board expansion bus 1 x Mini-PCIe half size
Display
Display Type 15" TFT-LCD
Max. Resolution 1024x768
Max. Color 16.2M
Luminance (cd/m2) 330
Viewing Angle (Degree) H: 160/V: 140
Touchscreen
Type Resistive Touch (for R model) / Projected Capacitive Touch (for P model)
Interface RS-232 (for R model) / USB (for P model)
Light Transmission(%) 80% (for R model) / 90% (for P model)
Power
Power Input 9-36V DC
Mechanical
Construction Silver aluminum front bezel and chassis
IP Rating IP65 Compliance (front panel)
Mounting Panel mounting, VESA 75 x 75
Dimensions (WxHxD) 319mm x 245mm x 51.68mm
Net Weight (Kgs) 4Kgs
Environmental
Operating Temperature 0~50°C
Storage Temperature -20~60°C
Storage Humidity 10~90% @40°C, non-condensing
Certificate CE/FCC Class A Compliance
Operating System Support
Windows XP pro
Windows XP Embedded
Windows Embedded CE6.0
Windows 7 pro for Embedded
Windows Embedded standard 7
(Win 7 support 3D Graphic function)
