Fanless Medical Grade All-in-one 19" Panel PC, SXGA 1280 x 1024, 5wire resistive, Intel FCBGA1023 3rd Generation Intel® Core i5 Celeron® processor (Model: WMPC-1900i5)

Fanless Medical Grade All-in-one 19", 5wire resistive, Full Falt, SXGA 1280 x 1024, 350 nits, Intel Panel PC, FCBGA1023 3rd Generation Intel® Core i5 Celeron® processor (17W max.),  4GB Memory, 320 GB HD, FCC-B, cUL, CE, VCCI, Medical 60601-1 3rd edition (EN 60601-1:2006, ANSI/AAMI ES60601-1:2005, CAN/CSA C22.2 No. 60601-1:08) (Model: WMPC-1900i5)

Fanless Medical Grade All-in-one 19", 5wire resistive, Full Falt, SXGA 1280 x 1024, 350 nits, Intel Panel PC, FCBGA1023 3rd Generation Intel® Core i5 Celeron® processor (17W max.), 4GB Memory, 320 GB HD, FCC-B, cUL, CE, VCCI, Medical 60601-1 3rd edition (EN 60601-1:2006, ANSI/AAMI ES60601-1:2005, CAN/CSA C22.2 No. 60601-1:08) (Model: WMPC-1900i5)

WMPC-1900i5
  • Overview
  • Download

Features:

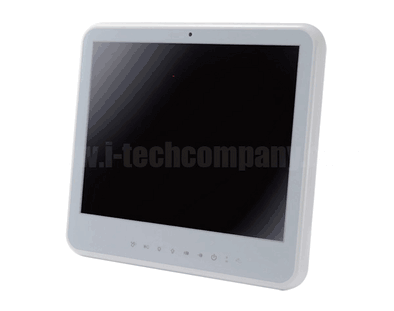

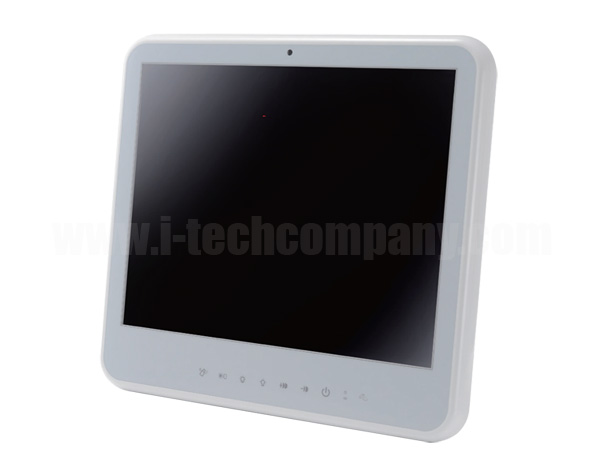

  • 19" Intel Core i Fanless Medical Panel PC
  • 19" 5:4 1280x1024 LED Panel
  • Intel 3rd gen. IVY bridge Core i7/i5 CPU
  • Front flat resistive touch screen
  • Medical UL60601-1 3rd edition certification
  • Anti-bacteria (MRSA) plastic housing
  • Optional PCI/PCIe expansion slot
  • Seamless in front & ultra slim 65mm only
  • Easy wipe surface with no internal corner
  • IP65 at front side, IPx1 for whole system
  • Friendly design of Function hot-deys
  • Optional 4KV LAN/COM/USB isolation I/O
  • Optional built-in battery pack
  • Optional P-CAP (10-fingers) touch



Specifications

System

CPU FCBGA1023 3rd Generation Intel® Core i5 processor (17W max.)
Chipset Intel BD82HM65 PCH
Graphics Intel® integrated HD Graphics 4000
Memory 16GB maximum, DDR3 SODIMM x 2, 1066/1333MHz, 2GB/4GB/8GB/16GB
Serial ATA SATA3 x 2, 600MB/s transfer rate
USB

‧External USB 2.0 x 4 (Type A)
‧Internal 3.3V Socket x 3, 5V Pin Head x 2

COM

x 6 (RS232,422,485 x 1 / RS232 x 5)

Audio Realtek ALC262 audio codec, 2+2 watts amplifier
LAN Marvell 88E8071 Gigabit Ethernet x 2
BIOS

AMI BIOS, 4M EEPROM
‧AMI BIOS
‧Flash ROM size: 64 Mb
‧RTC wake up/Wake on LAN/Power on after power failure/PnP/ACPI/RTC

Speaker 2 watts x 2 (front bottom)


LCD Panel

Size 19“ 5:4
Resolution SXGA 1280 x 1024
Brightness 350 nits
Contrast 1000:1
Color numbers 16.7M (6-bit x 3 + Hi FRC)
Viewing angle 170 (H) / 160 (V)
Response time 5 ms (Typ)
Backlight LED, 50,000 hours life time


Touch Panel

Type Front full flat touch panel
Technology 5-wire resistive touch (default)
Transparency > 78% (at 550 nm wavelength)
Hardness 3H
Durablity Knock 35 million times


Storage & Expansion

HDD 2.5” SATA HDD drive bay x 1 + anti-vibration kit, 320GB / 500GB
Expansion slot

‧PCI-E x 16 expansion slot x 1 (60W max, can't co-exist with isolated module) or PCI 2.2 x 1 (by different configuration)
‧Card size: 68mm (W) x 220mm (D) x 18mm(H)
‧Mini PCIe x 2 (52 pin card-edge type)



I/O & Control Keys

USB USB 2.0 x 4
COM DB-9 x 2 (RS232, RS232/422/485<w/ auto flow control>)
LAN RJ-45 x 2, Gigabit
Video-out DVI-I x 1
Audio Line-out, Microphone-in (3.5 mm phone-jack)
Power input DC-in x 1, 7V~32V (7V~28V with battery pack)
Control keys

‧Front side, projected capacitive type
‧Power on/off, Brightness, Audio volume, Backlight on/off, Touch on/off



Power

Power adaptor External, 100 watts, 90~264V AC in, 12V DC out, medical grade, 1.2m DC cable
Power consumption 49.824W ( MAX. loading without adapter )
Internal battery

‧Lithium-Ion, 28W, for 25 minutes operating (approx.), 2S2P
‧Charge time: 2 hours (system off), 3.5 hours (system on)



Mechanical and Environmental

Housing

Front: Full flat design / Touch (standard), Glass (Customization), Rear: Plastic + I/O cover w/ antibacterial treatment

Color

Housing: White, Control key icons: Grey ( Panton no. Cool grey 8C )

IP Rating IP65 – front side, IPx1 whole system
Cooling Fanless w/ back cover aluminum thermal plate
Mounting VESA 75 x 75 / 100 x 100 mm
Kensington lock Yes, bottom x 1
Dimension 450 x 420 x 85.3 mm (W x H x D, w/o stand)
Weight (net) 7.5 Kg (approximate, w/o power adaptor)
Temperature

. Operating : 0°C~35°C (chamber)
. Storage : -20°C~60°C

Humidity Operating & storage – 10%~90%, non-condensing
Regulatory

.FCC-B, cUL, CE, VCCI
.Medical 60601-1 3rd edition (EN 60601-1:2006, ANSI/AAMI, ES60601-1:2005, CAN/CSA C22.2 No. 60601-1:08)



Packaging / Options / Customization

Packaging
System, power adaptor, AC power cord, DVD (drivers & manual)
Options
‧WLAN – 802.11 a/b/g/n mini PCIe module with internal antenna x 2
‧802.11a/b/g/n dual-band 2T2R with Bluetooth
‧Webcam (3.2M pixel, USB)
‧28W battery pack
‧RFID reader (13.56Hz, USB)
‧PCI-E x16 or PCI riser card
‧Power adaptor w/ 2.4m or 3.6m DC cable
‧Anti-bacteria desktop stand (metal, white)
‧Equipotential terminal pin
‧PoE card (PCI-E x 4)
‧AG Film
‧Projected capacitive multi-touch
‧4KV Isolation Card x 1
(Isolation COM x 2, Isolation LAN x 1, Isolation USB x 1)
Customization
‧Tempered glass
‧Add extra two COM ports
‧High Speed USB 3.0 x 2
‧TPM 1.2 module
