Fanless Medical Grade All-in-one Panel PC 15.6” Wide, Projective capacitive touch, Intel® Celeron® J1900 2.0 GHz quad-core processor (Model: WMPC-1560CE)

Fanless Medical Grade All-in-one 15.6” Wide, Projective capacitive touch panel, 1366x768 LED panel, 400 nits, Intel Panel PC, Intel® Celeron® J1900 2.0 GHz quad-core processor (10W Max.),  4GB Memory, 320 GB HD, UL/cUL 60601-1 version 3, FCC/VCCI class B / EN 60601-1 / EN60601-1-2:2007 / ISO 14971 / Energy star 6.1 compliance / IEC62133 (Model: WMPC-1560CE)

Fanless Medical Grade All-in-one 15.6” Wide, Projective capacitive touch panel, 1366x768 LED panel, 400 nits, Intel Panel PC, Intel® Celeron® J1900 2.0 GHz quad-core processor (10W Max.), 4GB Memory, 320 GB HD, UL/cUL 60601-1 version 3, FCC/VCCI class B / EN 60601-1 / EN60601-1-2:2007 / ISO 14971 / Energy star 6.1 compliance / IEC62133 (Model: WMPC-1560CE)

WMPC-1560CE
  • Overview
  • Download

Features:

  • 15.6" Intel Baytrail Medical Panel PC
  • 15.6" Wide 16:19 1366x768 LED panel
  • 15.6" Wide 16:19 1366x768 LED panel
  • P-CAP multi-touch with 10 fingers
  • Medical UL60601-1 3rd edition certification
  • Anti-bacteria (MRSA) plastic housing
  • Optional PCI/PCIe expansion slot
  • Seamless in front & ultra slim 65mm only
  • Optional PCI/PCIe expansion slot
  • IP65 at front side, IPx1 for whole system
  • IP65 at front side, IPx1 for whole system
  • Optional 4KV LAN/COM/USB isolation I/O
  • Optional built-in battery pack



Specifications

System

CPU Intel® Celeron® J1900 2.0 GHz quad-core processor (10W Max.)
VGA Intel® integrated HD Graphics
Memory Two 1333 MHz DDR3L SO-DIMM socket support dual Channel, non-ECC, up to 8GB
Serial ATA SATA2 x 2, 300MB/s transfer rate x 2
USB

External USB 3.0 x 1 (Type A), USB 2.0 x 3 (Type A)
Internal 5V Pin Head x 5 (one reserve for PCT Touch, one reserve webcam support webcam hotkey disable function)

COM

External RS232,422,485 x 1(RS485 support auto-flow), RS232 x 1
Internal RS232 x 1, RS232 (Jumper TTL 5V, 12V) x1

Audio Realtek ALC262 Audio Codec, 2 + 2watts power amplifier
LAN Marvell 88E8071 Giga LAN x 1
BIOS

Brand: AMI
Flash ROM size: 64 Mb
Support RTC wakeup /Wake on LAN /Power on after power failure/PnP/ACPI/RTC

Speaker 2W x 2
Microphone Built-in microphone


LCD Panel

Size 15.6“ wide 16:9
Resolution 1366 x 768
Brightness 400 nits
Contrast 500:1
Color numbers 16.7M colors (RGB 6-bit + Hi FRC)
Viewing angle 170 (H) / 160 (V)
Response time 8 ms (R + F)
Backlight LED, 50,000 hours life time


Touch Panel

Type Front full flat touch panel
Technology Projective capacitive touch panel (10 fingers)
Light transmittance 90% ± 3%
Hardness 7H pencil, pressure 750g/45°
Input Mode Finger, thin gloved hand or conductive stylus
Resolution 100ppi to 25ppi Based WIN7 definition ppi (Pixel per inch)
Life time 100M times


Storage & Expansion

HDD 2.5” SATA HDD drive bay x 1
Expansion slot

PCI-E (x1) expansion slot x 1 (Option)
(10W max, can't co-exist with isolated module) Isolation card (Support Wincomm isolated module only, can't co-exist with PCI-E x 1, internal



I/O & Control Keys

USB USB 3.0 x 1 , USB 2.0 x 3
COM RS232 x 1, RS232/RS422/RS485 x 1 (RS485 support auto-flow)
LAN RJ-45 x 2, Gigabit
Video-out DVI-I x 1
Audio Line-out, Microphone-in (3.5 mm phone-jack)
Power input DC-in x 1, 7~32V (7V~28V with battery pack)
Control keys Front side, projected capacitive type, Power, audio volume, brightness, backlight on/off, touch on/off, webcam (disable), programmable button


Power

Power adaptor AC input 90 ~ 264V / 47 ~ 63 Hz / DC output 12V, medical grade, 1.2m DC cable
Power consumption 70.6 W
Internal battery Built-in battery backup function (option)


Mechanical and Environmental

Housing

Front: Full flat design
Rear: Plastic + I/O cover w/ antibacterial treatment
Anti-bacteria (MRSA)

Color

Housing: White
Control key icons: Silver Grey (Panton no. Cool grey 8C)

Cooling Fanless
Mounting VESA 75 x 75 / 100 x 100 mm
Weight (net) 5 kg (w/o power adapter)
Temperature

Operating : 0°C~40°C (chamber)
Storage : -20°C~60°C

Humidity Operating & storage – 10%~90%, non-condensing
Regulatory UL/cUL 60601-1 version 3, FCC/VCCI class B / EN 60601-1 / EN60601-1-2:2007 / ISO 14971 / Energy star 6.1 compliance / IEC62133



Packaging / Options / Customization

Packaging
System, power adaptor, AC power cord, DVD (drivers & manual)
Options
‧802.11 a/b/g/n WLAN module (Mini PCIe)
‧802.11 a/b/g/n WLAN + bluetooth 4.0 module (Mini PCIe)
‧5M pixel AF webcam module (USB)
‧Built-in back up battery
‧RFID reader (13.56Hz, USB)
‧Equipotential terminal pin
‧PCI-E x 1 riser card
‧Power adaptor w/ 2.4m or 3.6m DC cable
‧Anti-bacteria desktop stand (metal, white)
‧TPM module
Customization
‧4KV Isolation Card x 1
(Isolation COM x 2, Isolation LAN x 1, Isolation USB 2.0 x 1)

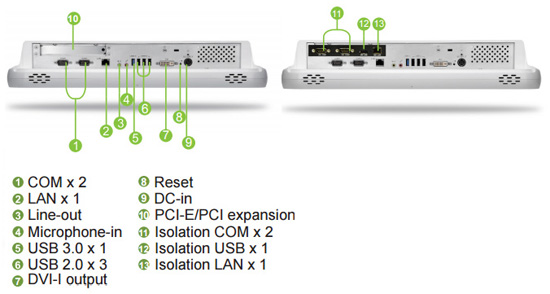

I/O Connectors:
