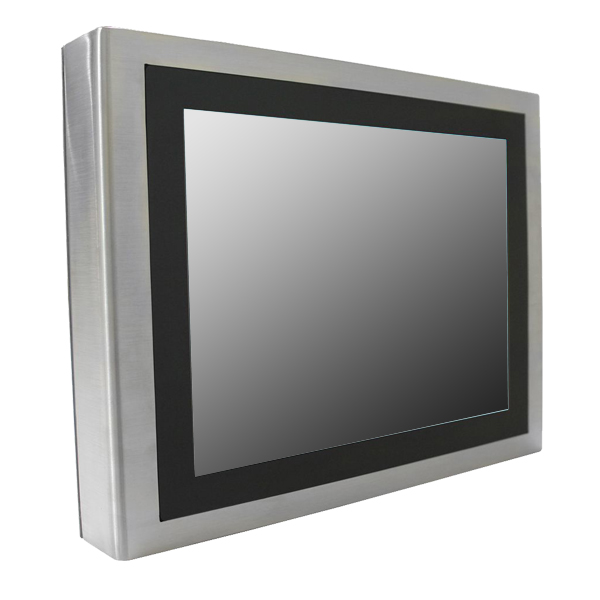

Fanless 12.1" Fully IP65 stainless steel panel PC with true flat PCT T/S, i3 7100U, 2 x USB , 2 x RS232 2 x GLAN , 1 x 12V DC in PW, external heatsink,VESA 100 x 100 & Yoke mount, Res: 1024 x 768 dpi (Model: KSP1210-i3A-FPCAP)

Fanless 12.1" Fully IP65 stainless steel panel PC with true flat PCT T/S, i3 7100U, 2 x USB , 2 x RS232  2 x GLAN , 1 x 12V DC in PW,  external heatsink,VESA 100 x 100 & Yoke mount, Res: 1024 x 768 dpi (Model: KSP1210-i3A-FPCAP)

Fanless 12.1" Fully IP65 stainless steel panel PC with true flat PCT T/S, i3 7100U, 2 x USB , 2 x RS232 2 x GLAN , 1 x 12V DC in PW, external heatsink,VESA 100 x 100 & Yoke mount, Res: 1024 x 768 dpi (Model: KSP1210-i3A-FPCAP)

Main Feature

  • Fanless design and compact solution
  • 7th Gen Intel® Core™ i3 CPU
  • Resolution 1024 x 768 dpi
  • PCAP touch solution
  • Fully IP65 compliant 6-sised stainless steel chassis
  • All IP65 stainless connectors
  • 2 x USB, 2 x GLAN, 2 x RS232
  • VESA mounting
  • 316 for stainless steel Enclosure optional
KSP1210-i3A-FPCAP
  • Specifications
  • Download
  • Contact Sales
System
CPU 7th Gen Intel® Core™  i3 7100U CPU
Memory 2 x 204-pin DDR3L 1600MHz SODIMM up to 16 GB
H/W Monitor
Watchdog Timer 256-Level Watchdog Timer
I/O Ports
RS232 2
GLAN 2
USB 2
Storage
Storage 1 x SATA 2.0 2.5” HDD/SSD
Expansion
Mini-PCIe 1 x Full-size (one w/ mSATA)
1 x Full-size
Power Requirement
Power Input Voltage DC in 12V
Touch Screen
Touch screen PCAP
OS support
Win Pro 7,8,10 ; Embedded Win 7, 8,10

Display
Size 12.1" TFT (4:3)
Resolution 1024 x 768
Colors 16.2M
Luminance ( cd/m2) 500
Contrast Ratio 700:1
View Angle ( H / V ) 160/160
Mechanical & Environmental
Operation Temp -20 ~ 55°C
Storage Humidity 10 ~ 90%, non-condensing
Mount VESA mounting(100x100mm)
Dimension
(W x H x D mm) &Weight
347 x 276 x 58 (9kg)
Optional
RS232 /422/485 1
External antenna 1 or 2
RFID 1
Full IP65 Power adaptor 1
No Touch Screen 1
Optical Bonding 1
AR Glass 1


Optional High Brightness Panel
Resolution 1024 x 768
Color 16.2M 16.7M 16.7M 16.2M 16.7M
Luminance(cd/m2) 2000 1600 1000 1000 800
Contrast Ratio 700:1 700:1 1700:1 700:1 700:1
Viewing Angle (H/V°) 160/160 160/160 170/170 160/160 160/160
