Features and Benefits
The Avocent DSR800 KVM switch is designed for lower-density applications and distributed locations.
- A KVM network appliance that combines digital and analog technology
- Features connections for eight servers in a 1U chassis

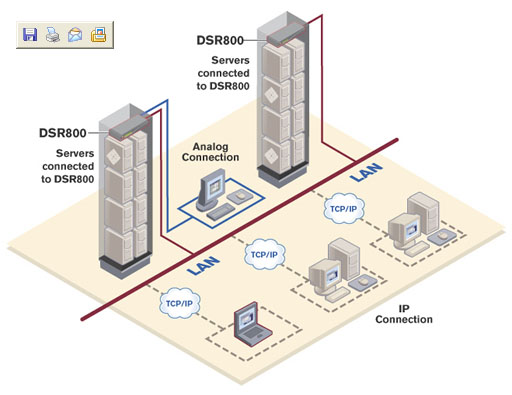

- Provides analog access at the rack, and digital IP access from anywhere
- Allows you to troubleshoot or reboot a server no matter where you are
- Features DSRIQ CAT 5 cabling to reduce cable bulk and provide connectivity from the DSR800 switch to your servers
- Supports all major server platforms and VT100 serial-based devices
- Flash-upgradeable for future firmware compatibility
- The patented OSCAR? on-screen graphical user interface provides local access at the rack
- Works with Avocent DS management software for secure, centralized control of all connected devices:
- DSView® 2 software to access all devices via a standard IP connection
- DSView 2 software also creates and configures your network access environment
- DSWebview software for browser-based remote access to devices
- DSAuth software for user authentication/permissions, topology and per-device contact information
| Specifications |
| Mechanical |
Height |
1.75 in. (4.45 cm) |
|
Width |
17.00 in. (43.18 cm) |
|
Depth |
11.00 in. (27.98 cm) |
|
Weight |
8 lbs. (3.6 kg) without cables |
| Environmental |
Operating Temp |
32 to 104°F (0 to 40°C) |
|
Storage Temp |
-4 to 158°F (-20 to 70°C) |
Power |
Operating Voltage |
100 to 240 VAC |
|
Power Frequency |
50 - 60 Hz autosensing |
|
Input |
40 W maximum |
| Supported Hardware |
Computers |
PS/2, Sun, USB |
|
Monitors |
VGA, SVGA (XGA, XGA-II with adaptor) Maximum resolution Local Port:
1600 x 1280 @75Hz, Digital Port Maximum Input Resolution 1280X1024, 75Hz |
|
Peripherals |
PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse
Other devices: VT100 serial-based devices |
| Standards |
Approved Agency |
EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15
Class A, VCCI Class A, IEC950,EN60950,UL 1950 third edition, CSA C22.2 No.950 |
| Order Detail |
Part Number |
| 1U 1 user 8 port Digital KVM over IP switch |
DSR800-AM |
| DSView 3 software - 1 User add-on license |
DSV3-1 |
| DSView 3 software - 5 User add-on license |
DSV3-5 |
| DSView 3 software - 1 Spoke Add-on License |
DSV3-SPOKE |
| DSView 3 Portfolio B - 1 Hub/1 Spoke/5 Users |
DSV3-SW |
| DSView 3 Portfolio A - 1 Hub/5 Users |
DSV3-SWA |
| DSView 3 software - Upgrade 1 Hub/5 Users
(Existing DSView 2 customers upgrading to DSView 3) |
DSV3UG-SW |
| DSView 2 user software for 1 user (Required: DSVIEW1-1 or 1-5 or 1-100) |
DSVIEW1-1 |
| DSView 2 user software for 5 users (Required: DSView1-5 or 1-1 or 1-100) |
DSVIEW1-5 |
| Modules |
Part Number |
| Server interface module for VGA PS/2 kybd PS/2 mouse |
DSRIQ-PS2 |
| Server interface module for VGA PS/2 kybd PS/2 mouse (extended version) |
DSRIQ-PS2L |
| Server interface module for serial-based devices (requires UPD-AM power supply) |
DSRIQ-SRL |
| Server interface module for VGA, USB keyboard/mouse |
DSRIQ-USB |
| Sever interface module for VGA or 13W3 , Sun keyboard / mouse |
DSRIQ-VSN |
| Power Supply |
UPD-AM |
This product has a limited warranty of:
2 years for parts and 2 years for labor.
This warranty is provided by Avocent. www.avocent.com
Support Phone Number:
888 793-8763
Warranty Phone Number:
888 793-8760
