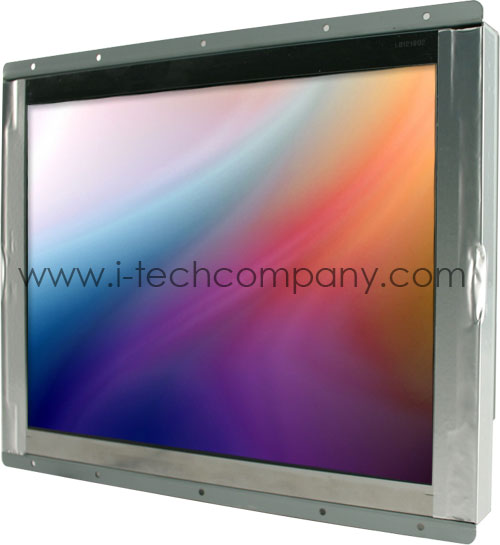

12.1" Open Frame LCD Monitor Media Player (Model WOPMP1210L1)

Digital Dynamic Signage Open Frame LCD Monitor Media Player 12.1" (Model WOPMP1210L1)
  • Front View
  • ISO Front View
  • Rear View
  • Side View
  • Top View
  • Input/Output
  • Accessories

Digital Dynamic Signage Open Frame LCD Monitor Media Player 12.1" (Model WOPMP1210L1)

Inquiry/Quote Request
WOPMP1210L1
  • Overview
  • Download

Features:

  • Credit Card Style Remote Controller
  • Simple/Powerful Multimedia Platform
  • Playback Functions: Play, Stop, Pause, Repeat, Previous/Next Track, Mute, Rotate,
  • Interval Time, Play List and Media Classification
  • All-in-one Full-range LCD solutions
  •  Built-in 6 types Memory card slots- Compact Flash card, IBM Micro Drive, SM/ MMC/ SD/
  • MS card
  • Durable Metal Housing
  • Low Total Ownership cost
  • Optional Power Saving with Motion Detect and Auto Timing Setting Boot.
Built-In Media Player

Specification
Model Name WOPMP1210M1
Viewable Size lmage 12.1"
Active Display Area (mm) 246.0(H)x184.5(V)
Resolution(DOT) 800x600
DOT Pitch (mm) 0.3075(H)x0.3075(V)(typ.)
Display Color 262,144(6bit/colors)
Contrast Ratio 200:1(typ.)
Brightness (CD/m^2)

300

Viewing Angle (CR >=10) -60~60(H);-55~40(V)
Power Soruce AC100~240 V, Universal,?0%
Power Consumption 38W typical,normal operation
VESA Mounting Yes
Playable Format MPEG1/2/4,JPEG,MP3
Storage Capacity CF/IBM Microdrive/SM/MMC/SD/MS card
Audio Output(Optional) Stereo Ouput 2Wx2 Speaker
Playback Functions Play, Stop, Pause, Repeat,
Previous/Next Track,Mute,Rotate,Interval Time,Play List and Media Classification
VGA Mode(optional)
Synchronization Range Horizonal /Vertical

31.5~48.1KHz/56~75Hz
800x600@60Hz,75Hz
