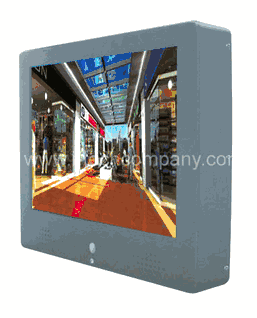

10.4" Chassis Mount LCD Monitor Media Player (Model WCHMP1040P1)

Digital Dynamic Signage Chassis Mount LCD Monitor Media Player 10.4" (Model WCHMP1040P1)

Digital Dynamic Signage Chassis Mount LCD Monitor Media Player 10.4" (Model WCHMP1040P1)

Inquiry/Quote Request
WCHMP1040P1
  • Overview
  • Download


Features:

  • Credit Card Style Remote Controller
  • Simple/Powerful Multimedia Platform
  • Playback Functions: Play, Stop, Pause, Repeat, Previous/Next Track, Mute, Rotate,
  • Interval Time, Play List and Media Classification
  • All-in-one Full-range LCD solutions
  •  Built-in 6 types Memory card slots- Compact Flash card, IBM Micro Drive, SM/ MMC/ SD/
  • MS card
  • Durable Metal Housing
  • Low Total Ownership cost
  • Optional Power Saving with Motion Detect and Auto Timing Setting Boot.
Built-In Media Player

Specification
Screen Size 10.4"
Active Display Area (mm) 211.2(H) x 158.4(V)
Pixel Pitch (mm) 0.264(H) x 0.264(V)
Panel Resolution (pixels) 800x600
Contrast Ratio 400:1
Display Color 262K
Brightness (CD/m^2) 400(typ.)
Viewing Angles (CR >=10) -70~70(H);-70~60(V)
Synchronization Range_Horizontal / Vertical 31.5~46.9KHz / 60~75Hz
Recommended Resolution 800x600
Net Weight (kg) 1.45KG
Power Source 12V DC in, with External AC to DC Adapter (100~240 AC)
Power Consumption 18W typical,normal operation
Power Management VESA DPMS Compliant
VESA Mounting Yes
Mechanical Chassis
Playable Format MPEG1/2/4,JPEG,MP3
Storage Medium CF/IBM Microdrive/SM/MMC/SD/MS card
USB Port x1(optional)
Audio Output Stereo Ouput 2Wx2 Speaker
Playback Functions Play, Stop, Pause, Repeat, Previous/Next Track,Mute,Rotate,Interval Time,Play List and Media Classification
Max. Video Resolution 640 x480 (scaled to fix panel resolution)

*The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
