SD250-N
  • Overview
  • Specifications
  • Download
Product Discontinued. Call Us at 888-483-2418 for Replace items.

Product Description

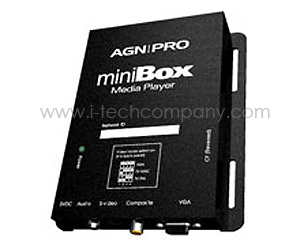

The miniBox™ SD250-N is a relaible, solid state unit that has a standard 10/100 Base-T network interface and can be configured to DHCP networks or configured with static IP. Connects automatically to our online Central Management Server or can be controlled from a network via HTTP or control command interface through Telnet/SSH. Built in drivers for touchscreens allow you to create engaging interactive content without complex application development. Playback can also be controlled by sending control strings through RS-232 or Ethernet.

  • Plays MPEG-1/2/4 (DivX) files in the native format
  • Plays most PC media formats using transcoder
  • DVD quality video output
  • VGA and Composite outputs
  • Update content and schedule through Ethernet 10/100 Base-T
  • Built-in web browser UI for uploading content


Specifications

Video Out Resolutions VGA (640 x 480)
Composite (720 x 480)
Audio Stereo Line Out
Processor IAN402 ARM based processor ESS Digital Media Processor 2 (DMP2) Duel Processor Architecture
Storage Medium Removable CompactFlash Type I/II memory card (not included)
Network IEEE 802.3 Ethernet 10/100 Base-T w/ Auto-MDIX
Power Supply 5V DC, 2A 100-240V AC external on plug
Consumption: 4w
Dimensions 5.25" x 4.5" x 1"
133.5 x 113.5 x 25 mm
Weight 13.2 oz. Net

File Support

Audio MP3
Movies MPG1,2,4(DivX)
AVI
WMV
Images JPG

Device Details

Package Contents Unit, Power Supply, VGA Cable, RS-232 Cable, Composite video Cable. 1/8" mini Cable, 1/8" mini-to-RCA Cable
Warranty One-year limited warranty on parts and labor




Mechanical Drawing
