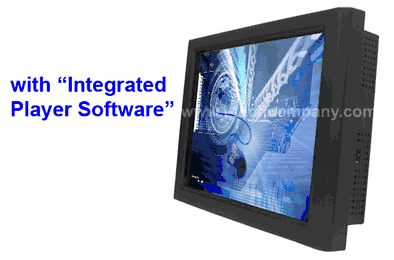

12" complete Digital Signage System with integrated player software. 1.5GHz x86 Processor, Window XP Embedded OS, 4GB Flash, 1GB RAM, and 1024x768 resolution. (Model: DSX1200TS)

12" complete Digital Signage System with integrated player software. 1.5GHz x86 Processor, Window XP Embedded OS, 4GB Flash, 1GB RAM, and 1024x768 resolution. (Model: DSX1200TS)
  • Front View
  • Front View
  • Front View
  • Side View
  • Side View
  • Bottom View

12" complete Digital Signage System with integrated player software. 1.5GHz x86 Processor, Window XP Embedded OS, 4GB Flash, 1GB RAM, and 1024x768 resolution. (Model: DSX1200TS)

DSX1200TS
  • Overview
  • Specifications
Product discontinues. Call us at 888-483-2418 for replacement item.

The iTechLCD Signage System’s DSX1200 offers an integrated computing display in a single, mountable package. Ideal for digital signage and kiosk applications, this elegant all-in-one system can be remotely managed. A Windows operating system offers a platform compatible with numerous software applications, with touch screen option, facilitates efficient deployments. Bring dynamic interaction to your audience with the flexible DSX1200, the future of interactive signage.

Features:

  • Elegant all-in-one, space saving design; easy to mount
  • Fan-less, high performance operation
  • Infrared (IR) touchscreen
  • High contrast LCD panel with wide viewing angle
  • Low power consumption
  • Web-enabled software for remote display management
  • Web-enabled, centralized content management and distribution software
  • Remote player monitoring, control, and upgrade


The Signage System DSX1200 Standard Package
1. One integrated computing display unit (All-in-One), 12”
2. AC/DC Adapter with Power Cord 3. Documentation
The Signage System DSX1200 Specs
  • Display : 12” TFT LCD ; 50,000 hours lamp life
  • Display Resolution: Up to 1024 x 768;
  • Processor: 1.5 GHz x86 processor
  • Memory (RAM): 1GB
  • Operating Systems: Windows® XP Embedded
  • Storage:
    - 2GB, 4GB, 8GB or 16GB flash module;
    - 2.5” HDD
  • Display Enclosure: ABS + PC Plastic
  • Control Buttons: Power (1) and Programmable (4)
  • Input/ Output Ports:
    - 1 Serial port,
    - 2 USB 2.0 ports,
    - RJ45 connector for Ethernet, 1 Audio-out jack,
    - 1 Microphone-in jack, 1 Line-in jack,
    -and 1 DC-in jack
  • Stereo speakers: Built-in speakers
  • Network Interface:
    - Ethernet 10/100 MB Base-T LAN;
    - 802.11a/b/g WLAN
  • AC/DC adapter:
    - Input voltage 100~240V AC, 50/60 Hz
    - Output: 18.5V, 3.5A
  • Power Cords: North America, EU, UK, China
  • Dimensions (H x W x D): 9.09 x 12.1 x 2.5 in, 231 x 309 x 63 mm
  • Weight: 8.8 lbs (4 Kg);
  • Regulatory: FCC Class B, CE, C-Tick, RoHS compliant
  • Operating Temperature: 0°C - 40°C
  • Humidity: 0% - 90% non-condensing

Major Options

  • Built-in 802.11a/b/g WLAN
  • IR touch screen

IR Touch Option

  • Fit In With :
    DSX1200 LCD Panel
  • Scan Periods :
    50Hz
  • Movement Mode :
    Input Point, Finishing Point, Following, Continuous Detection
  • Resolution Noh Play :
    4096(W) X 4096(D)
  • Output Form :
    Coordinate output
  • The number of optical elements :
    40(W) x 30 (D) for 12"
  • An optical element pace :
    6.2mm
  • A detection pace :
    3.1 x 3.1 mm
  • Seal Ability :
    IP65 Standards (Front Panel)
  • Temperature :
    Please check the spec for DSX1200
  • Drift :
    Maintenance free
