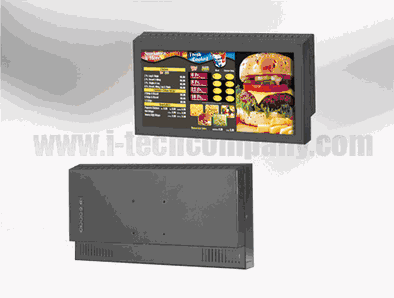

Stretch Display, Chassis 16" LCD monitor, 1280x645, CCFL-300nits, VGA input, (1/2 cut of 1280x1024) (Model:ECHS1600)

Stretch Display, Chassis 16" LCD monitor, 1280x645, CCFL-300nits, VGA input, (1/2 cut of 1280x1024) (Model:ECHS1600)

Stretch Display, Chassis 16" LCD monitor, 1280x645, CCFL-300nits, VGA input, (1/2 cut of 1280x1024) (Model:ECHS1600)

ECHS1600
  • Overview
  • Download
ECHS Series: Industrial Chassis Wall/Surface Mount Metal Housing LCD Monitor (Optional Integrated Touch Screen/PC/ DC Input/Front NEMA4x/Front Stainless steel bezel and more...)


Features Highlights:

  • 1. Metal Chassis/Housing for higher Impact protection. (Optional for Front AR Glass or Vandal Resistant glass)
  • 2. Built-in speak built-in speakers that allow the convenience Audio output.
  • 3. Side OSD buttons can prevent unnecessary setting changes.
  • 4. Above 24" LCD will include Front IR Sensor and Remote controller.
  • 5. Auto Video Signal ON / OFF Auto Always Power On

  • 1. Ultra low speed/Noise fan for extra cooling (24" LCD or above)
  • 2. VESA Mounting Hole Pattern
  • 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
  • 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
  • 5. Optional for RS232 Remote Control Protocol: Command Code to set system


Features:

  • Modular mechanism design provides flexible product configuration and easy maintenance.
  • Optional with auto-brightness sensor offers application in day and night
  • Optional to built-in PC eliminates external box

Specifications:


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Size 15.9" viewable diagonal area
Active Area / Pixel Pitch 360.96(H) x 181.89(V) mm / 0.282(H) x 0.282(V) mm
Native Resolution / Colors 1280(H) x 645(V) / 16 Million
Brightness / Contrast 325 cd/m2 (typ) / 600 : 1
Response Time ≦ 16 ms
Viewing Angle (typical) H. 160o (- 80o ~ + 80o) , V. 160o(- 80o ~ + 80o)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 3W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 15 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical With Base(W x H x D) : TBD
Without Base(W x H x D) : 405.7 x 228.9 x 66.0 (mm)
Carton W x H x D = TBD
Weight N.W. / G.W. TBD

Options Video / TV Others
SV + AV Digital Signage(Stand alone)
SV + AV + AV Looping Networking Digital Signage
SV + AV + TV Motion Sensor
  Light Sensor
  Auto-Dimming


LCD Options

  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.

  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

Remote Control Protocol: Command Code to set system




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor

Privacy Filter
Front Glass Options:
- Anti Reflective AR Glass 3mm
- Anti Reflective AR Glass 6mm Vandal-Resistance
- Anti Reflective AR Glass 8mm Vandal-Resistance
- Anti Glare AG Glass 3mm
