AMWorks® software is included with the Avocent AMX5010 KVM switch to provide you with centralized management capabilities.

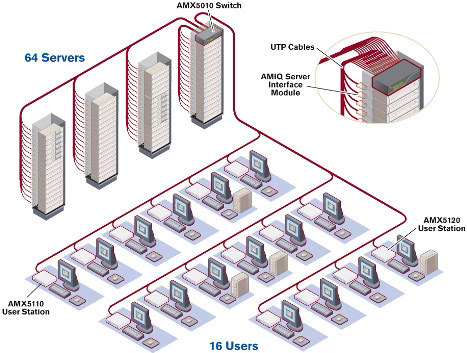

The AMX5010® system is a proven choice for test labs, demo labs and design environments.
Features and Benefits
- Provides access to all major server platforms and serial devices
- Designed for growing IT infrastructures with multi-rack, multi-device, multi-platform deployments
- Provides full, non-blocked access to servers
- Delivers real-time, high bandwidth video up to 1,000 feet from the server
- Front panel LED indicators add to ease-of-use
- Includes JAVA-based AMWorks software for centralized management
- The AMIQ server interface module, which provides connection from the server to the switch, reduces cable bulk and saves rack space
| Specifications |
| Mechanical |
Height |
3.4 in. (4.6 cm) |
|
Width |
17.2 in. (43.2 cm) |
|
Depth |
11.1 in. (28.1 cm) |
|
Weight |
16 lbs. (7.27 kg) without cables |
| Environmental |
Operating Temp |
32 to 122°F (0 to 40°C) |
|
Storage Temp |
-4 to 122°F (-20 to 70°C) |
Power |
Operating Voltage |
100 to 240 VAC |
|
Power Frequency |
50 - 60 Hz autosensing |
|
Input |
|
| Supported Hardware |
Computer |
AMIQ-PS2, AMIQ-Sun, AMIQ-USB server interface modules: IBM PC/AT, PS/2 and 100% compatibles |
|
Monitors |
VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75 Hz resolution |
|
Peripherals |
AM5110 & AMX5120 User Stations: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6 |
| Standards |
Approved Agency |
|
| Order Detail |
Part Number |
| 4 user x 42 server matrix switch |
AMX5020-001 |
| 8 output ports 32 input ports rack mount |
AMX5000-AM |
| 16 output 64 input ports |
AMX5010-AM |
| Modules |
Part Number |
| Compact server interface module for VGA Video PS/2 keyboard PS/2 mouse |
AMIQ-PS2 |
| Compact server interface module for VGA Video PS/2 keyboard PS/2 mouse - 10-pack |
AMIQ-PS210 |
| Compact server interface module for VGA Video PS/2 keyboard PS/2 mouse - 32-pack |
AMIQ-PS232 |
| Compact server interface module for VT100 serial-based devices (requires UPD-AM power supply) |
AMIQ-SRL |
| Compact server interface module for VGA, USB keyboard / mouse |
AMIQ-USB |
| Compact server interface module for VGA or 13W3 , Sun keyboard / mouse |
AMIQ-VSN |
| Power Supply |
UPD-AM |
This product has a limited warranty of:
2 years for parts and 2 years for labor.
This warranty is provided by Avocent. www.avocent.com
Support Phone Number:
888 793-8763
Warranty Phone Number:
888 793-8760
