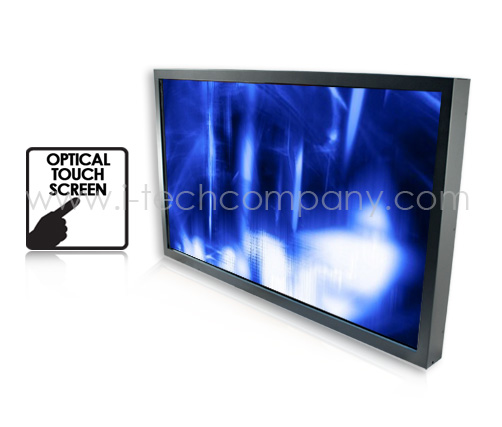

All in one PC Widescreen Display Chassis Mount, 24" LCD monitor, 1920 x 1080, 250 nits, Intel® Core™ i5 solutions, Flex wall mount., 4GB Memory and 500GB HD. With IR 6 points-touch, Support Linux and Window XP/7/8 and WiFi. NO SWOP. (Model: BCPCW2400HDi5-OT)

All in one PC Widescreen Display Chassis Mount, 24" LCD monitor, 1920 x 1080, 250  nits, Intel® Core™ i5 solutions, Flex wall mount., 4GB Memory and 500GB HD.   With IR 6 points-touch, Support Linux and Window XP/7/8 and WiFi. NO SWOP. (Model: BCPCW2400HDi5-OT)

All in one PC Widescreen Display Chassis Mount, 24" LCD monitor, 1920 x 1080, 250 nits, Intel® Core™ i5 solutions, Flex wall mount., 4GB Memory and 500GB HD. With IR 6 points-touch, Support Linux and Window XP/7/8 and WiFi. NO SWOP. (Model: BCPCW2400HDi5-OT)

BCPCW2400HDi5-OT
  • Overview
  • Download
  • Contact Sales

Features



  1. 10points Projective Capacitive touchscreen
  2. Metal Chassis Housing with built in speakers
  3. IR Remote Sensor
  4. Auto Power On/Off and Auto Signal On/Off


  1. Perforated rear Cover provide ample ventilation
  2. Recess handle can easily handle and install (42” and above)
  3. VESA Mount for Surface Mount
  4. Additional Cable Management Ring


  1. OSD: Power/Menu/Auto/Left/Right
  2. Main Power On/Off Switch
  3. VGA and DVI Video and Audio Input
  4. PC Reset Button


  Include low profile wall mount bracket




Specifications

Display Specifications – LED PANEL
Active Screen Size 24”(16:9)
Display Area(mm) 531.36(H) x 298.89(V)
Number of Pixels 1920 x 1080
Contrast Ratio 3000 : 1
Colors  16.7M
Brightness(cd/m 2 )   250
View Angle R/L178° x U/D178°
Recommended Resolution 1920 x 1080 @ 60Hz
Response Time 6.5 ms
Life Time 30,000/hr
Signal Input 1 x VGA,1 x DVI

Mechanical Specifications
Operating Temp. 0°~50°C
Relative Humidity 20~80% RH
Storage Temp. -20°~55°C
Dimensions(mm)  609(L)x376(W)x86(D)
Wall Mount (LxW/mm) 400(L)x100(W)
Color Black

Accessories
DVI Wire x 1
3.5” Audio Wire x 1
Power Core x 1

System Specifications
CPU i5-3470T (3M Cache, up to 3.60 GHz)
Motherboard Gigabyte B75TN embedded mother board
RAM DDR3 SDRAM 4 G up to 16G
Storage 500G HDD / 120G SSD
USB Port 4 x USB 3.0 Port
PC Audio output Realtek ALC662
Speaker Output 2 x 8 w internal speaker
LAN Port 1 x RJ-45 10/100/1000
WIFI IEEE 802.11b/g/n
Touch Screen Infrared Touch 6 points

Power
Power Input 110V/220V AC
Power Consumption 135W

PCT Touch (options)
Windows 8/7/Vista /XP, MAC OS X, Linux, Android etc.
Support panels of flat type for LCD
Touch Points 10 points touch
Operating Temp. -20°C ~ 70°C.
Operating Hum. 45%~85% RH
Storage Temp. -30°C ~ 80°C.
Light-proof Capacity Resisting lights from all angles
Hardness of surface 6H
Transmission 85% Typ. (By BYK-Gardner at 550nm.)



A - DVI-D port
B - Parallel port
C - VGA port
D - PS/2 keyboard/mouse port
E - USB ports
F - LAN port
G - USB ports
H - Line in
I - Line out
J - Mic in
