46" All in One Digital Sign Totem Stand alone Koisk (Model: DSB4600PC)

46" All in One Digital Sign Totem Stand alone Koisk embedded PC with Media Signage Software (Model: DSB4600PC)

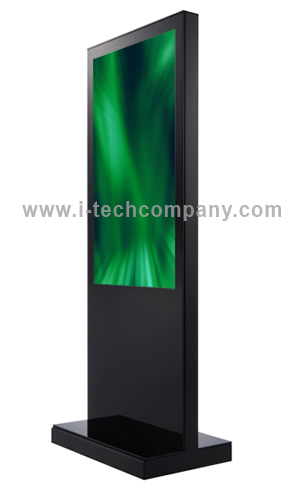

  • Front View
  • Side View

46" All in One Digital Sign Totem Stand alone Koisk embedded PC with Media Signage Software (Model: DSB4600PC)

DSB4600PC
  • Overview
  • Download
Digital Information Displays

Digital Information Display, model DSB4600PC is the perfect Signage Solution for variety of uses.  This All-in-One Digital Sign is an easy and cost effective way to go Digital.  The 46” LCD Display and Tower Design are perfect for in store marketing, directional signage or corporate messaging.  The smart All-in-One Unit allows for convenient placement anywhere electricity is available.  This Digital Sign looks as good in a Corporate Lobby as it does in a Retail Store.  It's freestanding upright housing and small footprint makes it the perfect Digital Solution for Trade Shows because it can easily be added to any booth regardless of booth size or construction.    The DSB4600PC DID features an on board computer running Windows 7 Professional and Plus Digital Signage Software to manage the digital content.  Content is easily loaded directly via a USB port, over a Network or even the Internet.

Model DSB4600PC includes a Touch Screen for added flexibility.

Features:

o 46" LCD Display
o Sleek Upright Tower Style Housing
o Stand Alone Design, easily placed and/or relocated
o On Board PC running Windows 7 Professional
o UBC Plus Software preloaded to create and schedule Digital Content
o Preassembled eliminating set up hassles
o Easily connects to a Network via 10/100 LAN port
o Content easily uploaded via USB or over a Network/Internet
o Easy to maintain

Specifications:

Display
Panel Type LCD
Viewable Area 46"
Display Colors 16.7 Million
Pixel Pitch 0.53025 x 0.53025
Max. Visible Angle 178° x 178°
Response Time 8 ms (GTG)
Brightness 450 cd/m2
Aspect Ratio 16:9 - Mounted in Portrait
Contrast Ratio 4000:1
Recommended Resolution 1080 1920 (Full HD)
Interface
Interface VGA Out, Audio In (2), Audio Out, USB (4), RJ45, PS/2, Serial, Parallel, VGA In, DVI In
Power
AC 100~240V @ 50/60Hz
Characteristics
Audio 20W
Speakers 10W x 2
USB 4
Dimension 70" H x 26.75" W x 17.5" D
Weight 166 lbs
Certification FCC
Warranty 3 Year
System
O/S Windows 7 Professional
Additional Software UBC Plus Diigtal Sinage Software
CPU Intel Pentium Dual Core 2.75GHz
Main Chipset Intel G41
Graphics Chipset Intel Graphics Media Accelerator X4500
RAM DDR2 1GB, FSB 800MHz
HDD HDD SATA 120GB
Option
Network 10/100 RJ45 LAN port

Download Standard Plus Player Software here!
