A2000R-AM
  • Overview
  • Specifications
  • Download
This is discontinuing product. Please call 1-888-483-2418 for more detail of the replacement products.

Features and Benefits

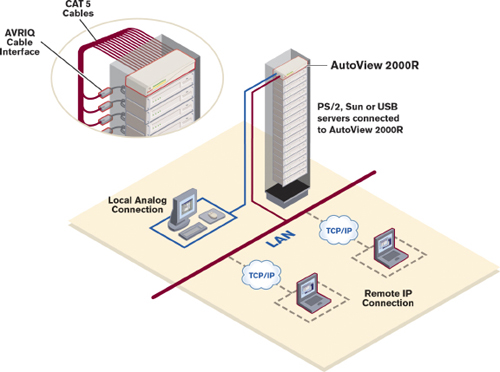

The AutoView 2000R switching system adds the convenience of a local user and simultaneous access for two IP-based users .

The AutoView 2000R KVM switch includes AVWorks?management software which supports a wide variety of operating systems. It features wizard-based installation and context sensitive on-line help.

With AVWorks software, you have KVM over IP remote access to any connected server in your network from any location. There are no distance limitations.

  • All CAT 5 cabling reduces cable bulk
  • Operational in minutes with wizard-based installation
  • Flexible access for local, extended and remote IP-based users
  • Multi-platform support: PS/2, Sun and USB servers
  • Support for serial-based devices
  • Flash upgrades for fast and easy updates
  • Keep Alive maintains server functions in the event of power failure to the switch
  • Switch-based authentication with password protection to each attached server
  • Multi-level security with 128bit over SSL encryption
  • Configurable encryption levels allow the AutoView 2000R KVM switch to negotiate an acceptable encryption level with the AVWorks software client via SSL
  • Convenient on-screen GUI display provides real-time system status at the rack
  • Advanced administration tools allow you to set permissions and access rights
  • Video viewer feature allows you to specify the connection speed to an appliance
  • Enhanced auto-discovery feature provides simultaneous access to multiple connected appliances based on assigned IP addresses
Specifications
Mechanical
Height
1.75" (4.45 cm)
Width
17" (43.18 cm)
Depth
11" (27.94 cm)
Weight
8 lbs. (3.6 kg)
Environmental
Operating Temp
32 to 104°F (0-40°C)
Humidity 10 ?95% non-condensing
Storage Temp
-4 to 158°F (-20 to 70°C)
Power
Operating Voltage
100 -240 VAC
Power Frequency
50 - 60 Hz
Input Power

Supported Hardware
Computers
IBM PC (PS/2, USB), Sun, and 100 compatibles

Monitors
XGA and VGA; Video Resolution - Local analog port: 1600 x 1280 @ 75 Hz

Peripherals
PS/2 keyboard, PS/2 mouse, Microsoft Explorer mouse, Microsoft IntelliMouse family
Standards
Approved Agency


Modules Part Number
1 local user 1 digital user 16 systems with AVWorks software A1000R-AM
1 local user 2 digital user 16 systems with AVWorks software A2000R-AM
Server interface module for VGA PS2 keyboard PS2 mouse AVRIQ-PS2
Server interface module for VGA PS/2 kybd PS/2 mouse (extended version) AVRIQ-PS2L
Server interface module for serial-based devices (requires UPD-AM power supply) AVRIQ-SRL
Server interface module for VGA USB keyboard/mouse USB mouse AVRIQ-USB
Sever interface module for VGA or 13W3 , Sun keyboard/mouse AVRIQ-VSN
Power Supply for AVRIQ-SRL UPD-AM
