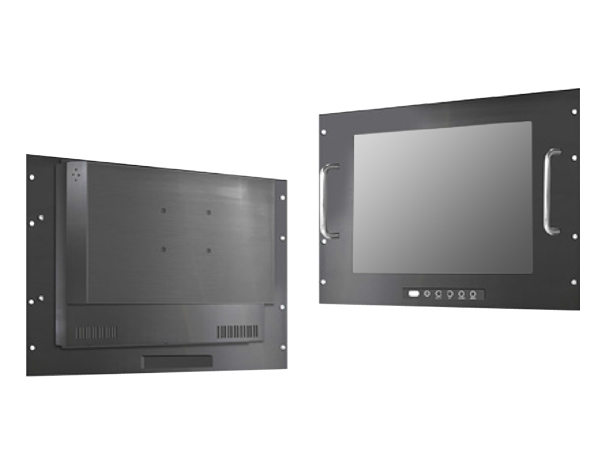

9U Rackmount LCD PC (3mm Metal Front Bezel), 19" LCD monitor, 1280 x 1024, 300 nits Intel Atom BayTrail, Celeron-J1900 quad cores processor, 2.0GHz with 5 Wire Resistive Touch Screen and USB Controller (Model: ERM1900TR-J)

9U Rackmount LCD PC (3mm Metal Front Bezel), 19" LCD monitor, 1280 x 1024, 300 nits VGA Input,Front OSD and Handle,VESA Mounting & Built in Power Supply with 5 Wire Resistive Touch Screen and USB Controller, Intel Atom BayTrail, Celeron-J1900 quad cores processor, 2.0GHz, 2GB Memory and 500HDD, 3xCOM (RS-232/RS-422/RS-485) , 4xUSB (2xUSB3.0, 2xUSB2.0) 1xVGA, 1xHDMI, 2xSATA, Audio, 2xGbE LAN, 1xPCIe, 1xMini-PCIe (Model: ERM1900TR-J)

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Intel® Celeron J1900
Intel ® Atom BayTrail
Dual Channel DDR3 1333 MHz SDRAM, Max up to 8GB
1 x VGA, 1 x HDMI, 3 x COM, 2 x LAN, 2 x USB 2.0, 2 x USB 3.0

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	4 : 3 / 19" viewable diagonal area
	Active Area / Pixel Pitch	376.3(H) x 301.1(V) mm / 0.294(H) x 0.294(V) mm
	Native Resolution / Colors	1280(H) x 1024(V) / 16.7 M
	Brightness / Contrast	250 cd/m2 (typ) / 800 : 1
	Response Time	< 5 ms
	Viewing Angle (typical)	H. 170o (- 85o ~ + 85o) , V. 160o(- 80o ~ + 80o)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
System	CPU	Intel® Celeron J1900 Processor
	BIOS	UEFI
	System / Graphic Chipset	Intel® Gen7 Intel Graphics DX 11*, OGL3.2
	System Memory	Dual Channel DDR3 1333 MHz SDRAM, Max up to 8GB
	HDD	2 x SATA
	I/O port	1 x VGA, 1 x HDMI
		2 x USB 2.0, 2 x USB 3.0
		3 x COM (RS232/422/485)
		2 x LAN, Mic-in, Line-out
	Expansion	1 x Mini PCI-e
Power	Power Input	12V DC input with adapter
Power	Power Consumption	42.5 Watt, <1 Watt
Operating Condition	Temperature / Humidity	0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Dimensions	Physical	Please refer to Drawing
Dimensions	Carton	W x H x D = TBD
