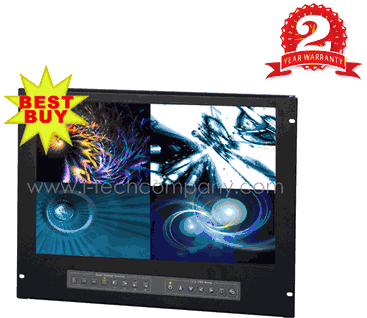

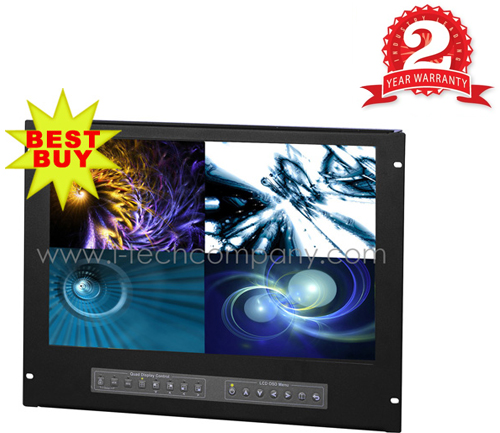

9U 22" Widescreen LCD Quad Display (Model: NQW922)

9U 22" Widescreen LCD Quad Display (Model: NQW922)

NQW922
  • Overview
  • Specifications
  • Download

LCD Display Benefits:
  • Built-in Quad Display
  • Ideal for CCTV security & industrial control
  • High resolution 1680 x 1050, 22” widescreen LCD

Display Features & Options:
  • 22" widescreen LCD in 9U
  • 12V, 24V and 48V DC Power options
Front QD membrane button
Monitor Grade A Wide 22" industrial TFT LCD panel

Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)

Net
Weight
Gross
Weight
NQW922 Series
500.4 x 70.5 x 399 mm
19.7 x 2.8 x 15.7 inch
565 x 539 x 156 mm
22.2 x 21.2 x 6.1 inch
12 kg / 26 lbs
15 kg / 33 lbs


Top
LCD Specifications

Item Description
LCD Manufacturer Samsung
Diagonal Size Wide 22" TFT
Max. Resolution 1680 x 1050
Brightness (cd/m²) 300
Color Support 16.7M
Contrast Ratio (typ.) 1000:1
Viewing Angle (H/V) 160° x 160°
Display Area (mm) 474 x 296
Tr Response Time (ms) 3.6
LCD Panel MTBF (hrs) 50, 000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution 720 x 400 70 Hz
640 x 480 60/70/72/75 Hz
800 x 600 60/70/72/75 Hz
1024 x 768 60/70/75 Hz
1152 x 864 60/70/75 Hz
1280 x 720 60/70/75 Hz
1280 x 1024 60/70/75 Hz
1680 x 1050, 60 Hz
Plug and Play DDC EDID 1.3
Connector DB-15 connector
Power Input Auto Sensing 100 to 240VAC, 50/60 Hz
Power Consumption Max. 48 watt, Standby 5 watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
