NP819-SDI

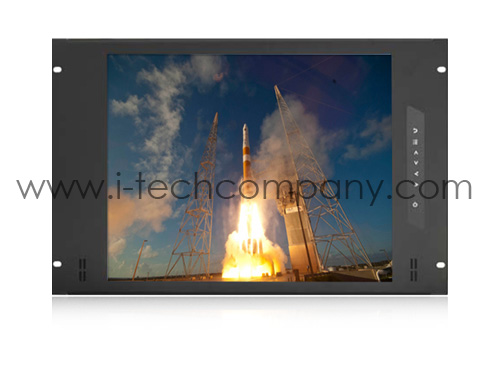

8U 19" TFT SAMSUNG LCD Rackmount Monitor  Flat Panel (Model: NP819-SDI)

8U 19" TFT SAMSUNG LCD Rackmount Monitor Flat Panel (Model: NP819-SDI)

NP819-SDI
  • Overview
  • Download

LCD Display Benefits

  • 7U 17", 8U 19" or 9U 20" rackmount LCD with DVI-D / VGA input
  • Ultra high resolution 1600 x 1200 for NP920
  • Ideal for CCTV security & industrial control

Options:
  • 3G / HD / SD-SDI Broadcast-grade input ( except NP717 )
  • MCS Multi-display control solution
  • 17" / 19" Touchscreen : Capacitive, Resistive
  • 20" Touchscreen : Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 48V, 24V or 12VDC power
  • MIL-type or lockable connector
Basic I/O: DVI-D + VGA
AV2.2D upgrade: DVI-D + VGA + BNC + S-Video + audio
AV2.2H upgrade: HDMI + VGA + BNC + S-Video + audio
Options:
SDI ( except RP-717 ), USB for touchscreen & DC power


Specifications

LCD Panel   Environmental
Manufacturer Samsung Operating 0 to 50°C Degree
Size (diagonal) 19" TFT Storage -5 to 60°C Degree
Max resolution : 1280 x 1024 Relative humidity 5~90%, non-condensing
Brightness (cd/m2) 250 Shock 10G acceleration ( 11 ms duration )
Backlight CCFL
Colors 16.7 M Vibration 5~500Hz 1G RMS random vibration
Contrast ratio (typ) 1000 : 1
Viewing angle (H/V) 160° x 160°
Active area (mm) 376 x 301 Mounting Rackmount, 8U
MTBF (hrs) 50,000   VESA mount, 100*100mm
Signal input VGA or DVI-D Regulatory FCC, CE
Casing Color Black front panel ( RAL 9005 )
Dark grey rear case ( RAL 7037 )
Power
Weight   Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Net : 7 kgs ( 15 lbs ) Consumption Max. 48 Watt, Standby 5 Watt
Gross 9 kgs ( 20 lbs ) Dimensions
    Product : 480 x 53 x 354.8 mm / 18.9 x 2.1 x 14 inch



  Packing 529 x 124 x 495 mm / 20.8 x 4.9 x 19.5 inch



Optional : 3G / HD / SD-SDI input

ITech’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market.

Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, ITech provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.


LCD Size Applicable 17" High Resolution 1920 x 1200
17" FHD 1080p
19" 1280 x 1024
19" Widescreen 1440 x 900
21.5" FHD 1080p
19" High Brightness 1280 x 1024
19" High Brightness Widescreen 1440 x 900
21.5" High Brightness FHD 1080p

INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked

Standard Compliance Video SMPTE 425M / 274M / 296M / 125M ITU-R BT.656
Audio SMPTE 299M / 272M-C

Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i           @60Hz, 4:2:2
ITU-R BT.656 576i           @50Hz, 4:2:2

Compatible Audio Format 3G-SDI

48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video

HD-SDI

48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video

SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized / Asynchronized Video

Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
