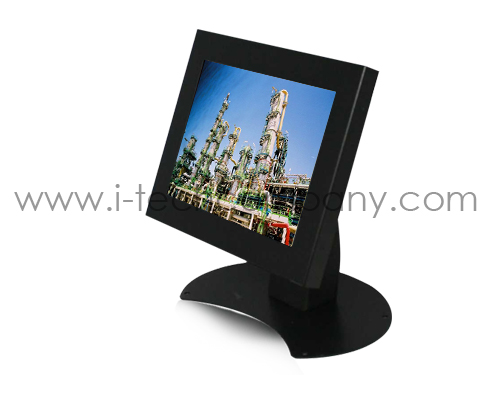

8'' 4:3 LED Industrial Chassis/Wall Mount Metal Housing, VGA Input,Side or Top OSD (Model: TCH0800)

8'' 4:3 LED Industrial Chassis/Wall Mount Metal Housing, VGA Input,Side or Top OSD (Model: TCH0800)

8'' 4:3 LED Industrial Chassis/Wall Mount Metal Housing, VGA Input,Side or Top OSD (Model: TCH0800)

TCH0800
  • Overview
  • Download

Features:

  • VGA Input
  • Optional RCA Composite Video + Speaker / Optional HDMI Input
  • Optional 5-Wire Resistive / Capacitive Touch supports all Windows / Linux OS
  • 4:3 Screen CCFL Back-Light 250nits
  • Supports 75x75 VESA Mounting on the back-case


Specifications:

Panel
Cell Type Color active matrix TFT (Thin-Film-Transistor) LCD panel
Pixel Arrangement RGB vertical stripe
Glass Surface Anti-Glare coating
Pixel number 800(H) x 600(V)
Pixel Pitch 0.264(H) x 0.264(V) mm
Display Size 8" viewable diagonal area
Active Area 162(H) x 121.5(V) mm
Color Depth 262K colors
Light Source 20,000 hrs (typ) LED BL
Brignthess 250 cd/㎡ (typ)
Contrast Ratio 500 : 1
Viewing Angle horizontal(typ) (L ~ R : - 70o ~ +70o)
vertical (typ) (U ~ D : - 50o ~ + 70o)
Input Signal
Video Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Composite Sync
Frequency Fh : 30 - 82Khz , Fv : 60 -75Hz
Resolution
Supported 1024 x 768@60 / 70 / 75 Hz
800 x 600@60 / 70 / 75 Hz
640 x 480@60 / 70 / 75 Hz
720 x 400@60 / 70 Hz
640 x 350@ 70 Hz
Recommended 800 x 600@60 Hz
Control
Front Panel Power , Menu,Select , + (Inc) , - (Dec) , Auto Adjust, Brightness, Contrast, H-Position, V-Position
Winsticker (OSD) Phase,  Color, Default,Volume , Language, Memory Recall
Power
Input Voltage AC: 90 to 260VAC, 50 / 60 Hz  DC:12V/ 1.2A
Power Rating
Operation 10 watt
Off < 1 watt
Audio 2W x 1 Speaker
Operating Condition
Temperature -10℃ ~ 65℃
Humidity 10% ~ 90% (no condensation)
Storage Condition
Temperature - 30℃ ~ 70℃
Humidity 10% ~ 90% (no condensation)
Dimensions
Physical (W x H x D)
Weight
N.W. / G.W. 2 Kg /3 Kg
Options
Video-In 1× RCA-Connector 1xS-Video
Touch Screen USB,RS-232 Interface
Certification FCC, CE
