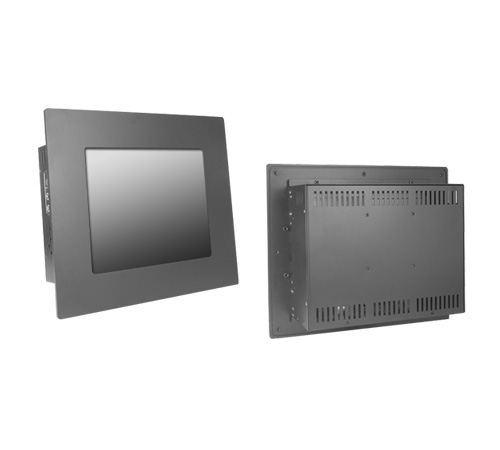

IP65 Front Panel PC (Metal-3mm), 8.4" LCD monitor, 800x600, LED-450nits, Rear OSD, including rear screw/Clamp/VESA Mount, WT(-20~70C), 12VDC-IN w/Adapter with 5 Wire Resistive Touch Screen + MS-98F5 ( J1900 ) / RAM 4GB ( 0C~70C ) / SSD 256GB ( 0C ~70C )(Model: CPM0840-J-TR)
IP65 Front Panel PC (Metal-3mm), 8.4" LCD monitor, 800x600, LED-450nits, Rear OSD, including rear screw/Clamp/VESA Mount, WT(-20~70C), 12VDC-IN w/Adapter with 5 Wire Resistive Touch Screen + MS-98F5 ( J1900 ) / RAM 4GB ( 0C~70C ) / SSD 256GB ( 0C ~70C )(Model: CPM0840-J-TR)
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Intel Atom Baytrail-M/D Chipset
- Intel Celeron J1900
- Single Channel DDR3L 1333 MHz SDRAM
- 1 x HDMI, 1 x COM, 2 x USB, 2 x LAN
CPM0840-J-TR
- Specifications
- Download
- Contact Sales
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
4 : 3 / 8.4" viewable diagonal area |
Active Area / Pixel Pitch |
170.4(H) x 127.8(V) mm / 0.213(H) x 0.213(V) mm |
Native Resolution / Colors |
800(H) x 600(V) / 262 K |
Brightness / Contrast |
450 cd/m2 (typ) / 600 : 1 |
Response Time |
< 30 ms |
Viewing Angle (typical) |
H. 160° (- 80° ~ + 80°) , V. 140° (- 70° ~ + 70°) |
Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
Power |
Power Input |
12V DC input with adapter |
Power Consumption |
20.68 Watt, <1 Watt |
Operating Condition |
Temperature / Humidity |
-30°C ~ 80°C (-22°F ~ 176°F) , 10% ~ 90% (no condensation) |
Dimensions |
Physical |
Please refer to Drawing |
Carton |
W x H x D = TBD |
|
|
Options |
Touch |
Video / TV |
Enhanced Panel |
Others |
Resistive touch |
SV + AV |
Panel with LED backlight |
Digital Signage(Stand alone) |
Capacitive touch |
SV + AV + AV_Looping |
High brightness panel |
Networking Digital Signage |
SAW touch |
SV + AV + TV |
Wide Temperature |
Motion Sensor |
Infrared touch |
|
Sunlight Readable |
Light Sensor |
Protected glass |
|
|
Auto-Dimming |
|
|
PC Specifications |
Processor |
CPU |
Intel Celeron Processor J1900, QC, 10W |
Frequency |
J1900, 2.0 GHz, up to 2.42 GHz |
L2 Cache |
2 MB |
CPU Type |
BGA |
Chipset |
Integrated |
BIOS |
AMI |
Memory |
Technology Max. Capacity |
Dual-channel DDR3L 1333/1066 MHz |
|
Up to 8GB |
Socket |
2 or 1 x 204-pin SO-DIMMs
(depends on SKU) |
Display |
Controller |
Intel HD Graphics |
Graphic Memory |
Shared system memory up to 1.7 GB SDRAM |
LVDS |
Daul Channel 24-bit
(add chrontel 7511B chipset) |
VGA |
1 |
Multiple Display |
2 independent displays |
Display Interface |
VGA up to 2560 x 1600 @60Hz LVDS up to 1920 x 1200 @60Hz |
Ethernet |
Controller |
2 or 1 x Realtek RTL8111G-CG GbE LAN (depends on SKU) |
Audio |
Controller |
Realtek ALC887 HD Audio Codec |
Super I/O |
Controller |
Fintek F81866AD-I |
H/W Monitor |
Watchdog Timer |
256-level Watchdog Timer |
|
Smart Fan |
Yes |
TPM |
Controller |
Pin header |
I/O Interface |
USB |
8 x USB 2.0 (4 x internal; 4 x rear) |
Serial |
6 x COM ports (COM1: rear, COM2~6:
internal)
COM1: RS-232, 0V/5V/12V
COM2~6: RS-232, w/o power |
Parallel |
1 (Pin header) |
PS/2 |
1 (Pin header) |
GPIO |
8-bits (4 x GPI, 4 x GPO), 3.3V |
Expansion
Slot |
PCIe x1 |
1 |
M.2 |
N/A |
Mini-PCIe |
1 x Full-size (w/ mSATA) |
Storage |
SATA |
1 x SATA 2.0 |
mSATA |
1 |
Power Supply |
DC |
DC-in 12V |
ATX |
N/A |
Environment |
Operating Temperature |
0 ~ 60°C |
Operating Humidity |
10 ~ 90%, non-condensing |
Storage Temperature |
-20 ~ 80°C |
Storage Humidity |
10 ~ 90%, non-condensing |
Form Factor |
Dimensions |
170 x 170mm (Mini-ITX) |
Weight |
0.37 kg |
Certification |
EMC |
FCC, CE, RCM, VCCI, BSMI |
Software Platform |
OS Support |
Windows 7 (32/64-bit) Windows 8 (32/64-bit) Windows 10 (64-bit) |
|
