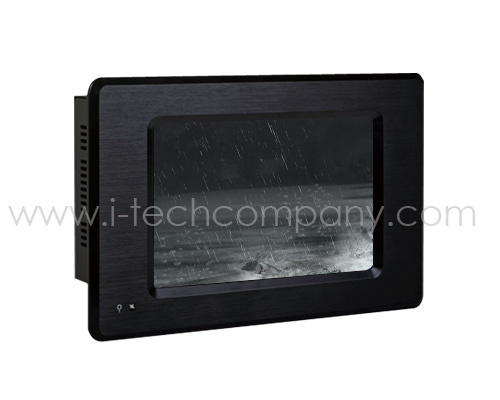

7" WVGA TFT touchscreen LCD Rugged IP65 Touch Panel PC (Model: XOPC0700)

7" WVGA TFT touchscreen LCD Rugged IP65 Touch Panel PC (Model: XOPC0700)

7" WVGA TFT touchscreen LCD Rugged IP65 Touch Panel PC (Model: XOPC0700)

XOPC0700
  • Overview
  • Download

Features:

  • TI AM3517 Sitara ARM Cortex-A8
  • 7" WVGA Touch Screen Fanless Panel PC
  • 512MB DDR2 onboard
  • 512MB NAND Flash onboard
  • 1 LAN, 2 USB, 2 COM, 1 SD/MMC, 12-bit GPIO
  • Made and Supported in the USA


Specifications:

PROCESSOR SYSTEM
• TI® AM3517 Sitara ARM Cortex-A8
MEMORY
• 512MB DDR2 onboard
- 4 DDR2 64Mx16 RAM
LCD and TOUCH SCREEN
• 7" (800x480) WVGA TFT touch screen LCD
• Supports touch screen
- TI® TSC2004 touch screen controller
• 400 NITS
• 4-Wire Resistive type
STORAGE
• 1 SD/MMC card socket
• 512MB NAND Flash
- Samsung K9F4G08U0D flash memory 512Mx 8bit (512MB)
ETHERNET
• LAN8710 10/100Mbps LAN chip
• 1 LAN port
• Supports 10BASE-T and 100BASE-T
AUDIO
• 1 Line-out
COM
• 1 RS232/422/485 COM port
• 1 RS232 COM port
USB
• 1 TUSB1210 USB transceiver
• 2 Type A USB 2.0/1.1 ports
GPIO
• 12-bit GPIO connector
I/O PORTS
• Front
- 1 Power LED
• Top
- 1 SD/MMC card socket
• Bottom
- 12-bit GPIO (2 7-pole terminal blocks)
- 1 Line-out
- 1 DB-9 RS232 COM
- 1 RJ45 10/100Mbps LAN with LEDs
- 2 USB 2.0 (Type A)
- 1 DB-9 RS232/422/485 COM
- 1 DC-in (2-pole Phoenix terminal block)
- 1 power switch
POWER
• Power input voltage
- 14~30Vdc (+/-5%) input
ENVIRONMENT
• Temperature
- Operating: -20oC ~ 65oC
- Storage: -30oC ~ 80oC
• Relative Humidity
- 95% RH at 65oC, 1 week
• Corrosion
- 4 periods of 7 days at 65oC with 90-95% relative humidity after 2 hours salt spray or waiver
FRONT PANEL PROTECTION
• IP65 (Dust Tight; Water Proof protection)
CONSTRUCTION
• Aluminum front bezel, Rugged metal housing
MOUNTING
• Wall mount (VESA 75x75)
• Panel mount (Mounting clamp)
DIMENSIONS
• 235mm x 150mm x 40.8mm (W x H x D)
WEIGHT
• 2.10kg
OS SUPPORT
• Windows CE 6.0
• Linux 2.6.x
CERTIFICATIONS
• CE
• FCC Class B
• Compliant with IEC 60945 (Protected B)
PACKING LIST
• 1 XOPC0700 Panel PC
• 1 Poron foam
• 2 terminal blocks
• 1 power adapter
- 19Vdc power adapter
- Terminal block power cable
• 1 Quick Installation Guide
• 1 CD disk includes:
- BSP/Manual
